4-Way Outlet Shapes, VG style
Art.-No. 404-13009 | 413-1-J-PO-X-BK | Details

403-1 supplied / fully recovered.

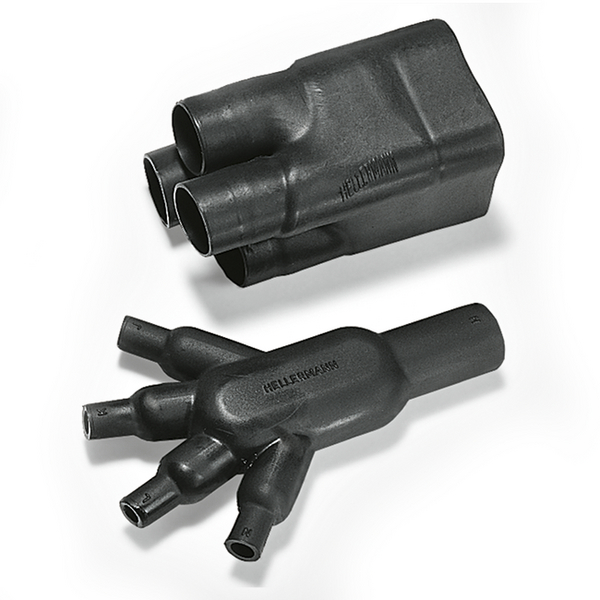

4-way outlet shape
Cable sealing, strain relief and mechanical protection

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

4-Way Outlet Shapes, VG style >

Base Data

Application	Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
Colour	Black (BK)
Material	Polyolefin, cross-linked (PO-X)
PART DESCRIPTION	413-1-J-PO-X-BK
Pack Content	1pc.
Package Content packed in	bag
Product Family	Helashrink 400 Series
Product Group	4-Way Outlet Shapes, VG style
Shrink Ratio	up to 3:1
Type	413-1-J
Variant	For 4-core cables

Product Dimensions


Flexibility	Flexible
HW ± 30 %	1.8mm
JW ± 30 %	1mm
P ± 10 %	150mm
P ±10%=overall length	150mm
R nom.	72mm
R ± 10 %	72mm
S nom.	65mm
S ± 10 %	65mm
T ± 10 %	75mm
∅H max. b	19mm
∅H min. a	38.5mm
∅J max. b	10mm
∅J min. a	19mm
∅J/K/L/N max. b	10mm
∅J/K/L/N min. a	19mm
∅K max. b	10mm
∅K min. a	19mm

Downloads

Specifications

Dielectric Strength	15kV/mm
Dielectric Strength test method	ASTM D2671
Flammability	ASTM D635
Min. Shrink Temperature - °C	+135 °C
Operating Temperature	-50 °C to +135 °C
ROHS compliant	Yes
Specifications
Tensile Strength	19MPa
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

5022660462382

More Information

UNSPSC Key

39121721
