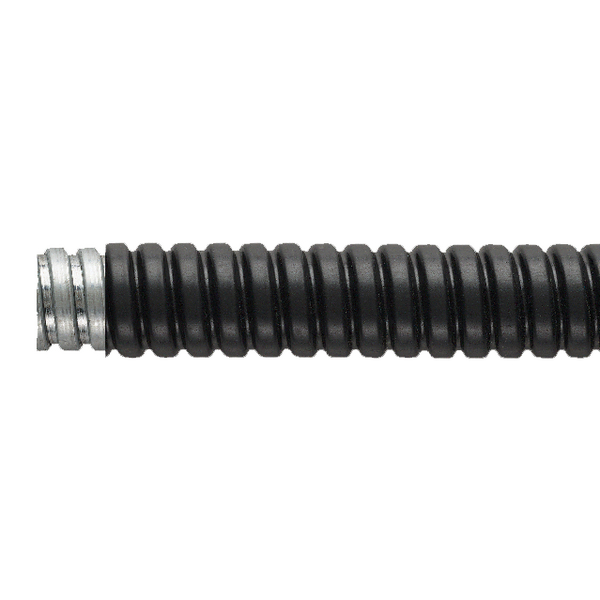

FPU25B-25M-GS/PUR-BK
Art.-No. 166-90672 | FPU25B-25M-GS/PUR-BK |  Details

Halogen Free.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyurethane resin (PUR)
    PART DESCRIPTION FPU25B-25M-GS/PUR-BK
    Pack Content 25.0m
    Package Content packed in reel
    Type FPU25B-25M
    Bending Radius min. (BR) 2.17"
    Bending Radius min. (R) 55mm
    Diameter (D) 21.1mm
    Nominal ∅ 0.75"
    Nominal ∅ 25.0mm
    Outside Ø (OD) 26.0mm
    Outside ∅ (OD) 1.02"
    Weight 503g/m
    ∅ D 0.83"
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Operating Temperature -40 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026561554
    Packaging 1 - Weight (kg) 12.58kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
