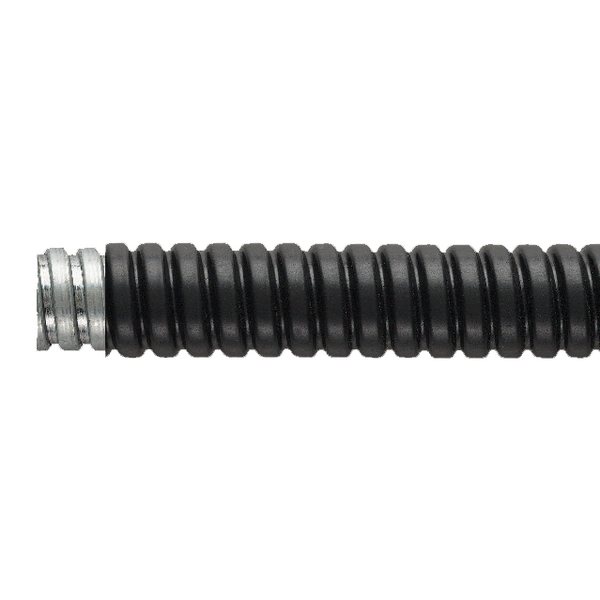

FPU32BU-25M-GS/PUR-BU
Art.-No. 166-90680 | FPU32BU-25M-GS/PUR-BU |  Details

Halogen Free.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Blue (BU)
    Material Galvanised Steel (GS), Polyurethane resin (PUR)
    PART DESCRIPTION FPU32BU-25M-GS/PUR-BU
    Pack Content 25.0m
    Package Content packed in reel
    Type FPU32BU-25M
    Bending Radius min. (BR) 2.36"
    Bending Radius min. (R) 60mm
    Diameter (D) 28.1mm
    Nominal ∅ 1"
    Nominal ∅ 32.0mm
    Outside Ø (OD) 34.0mm
    Outside ∅ (OD) 1.34"
    Weight 732g/m
    ∅ D 1.11"
    CSA Certified No
    Flammability UL 94 V0
    Halogen-free Yes
    Operating Temperature -40 °C to +100 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026561639
    Packaging 1 - Weight (kg) 18.3kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    Perfect cable protection with flexible conduits and fittings, braided sleeving, spiral binding and cable protection tubing ...

    Cable Protection Conduits >
