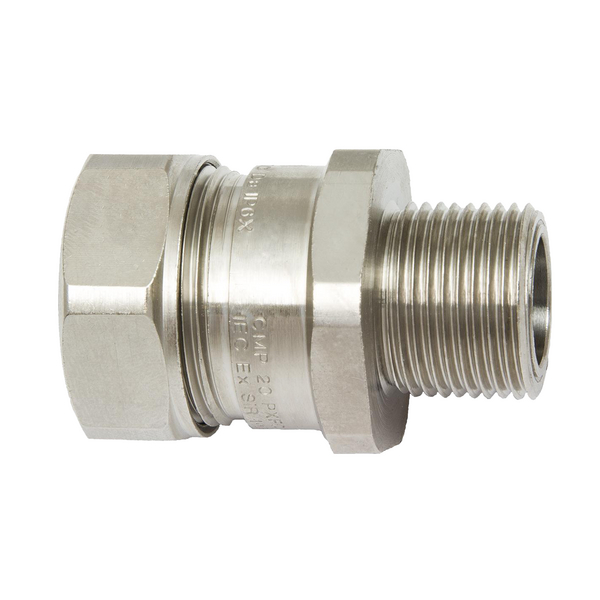

LTP20-050-EXD-NPB/PA6-ML
Art.-No. 166-90569 | LTP20-050-EXD-NPB/PA6-ML | Details

Add to watchlist

Request your individual offer now

Request quote

Base Data

Colour	Metal (ML)
Material	Nickel Plated Brass (NPB), Polyamide 6 (PA6)
PART DESCRIPTION	LTP20-050-EXD-NPB/PA6-ML
Pack Content	1pc.
Package Content packed in	pack
Thread type	NPT
Type	LTP20-050-EXD
Variant	Straight

Product Dimensions

Bore Diameter (Imperial)	0.51"
Bore Diameter (metric)	13.0
Height (H)	29.0mm
Length (L)	47.0mm
Nominal ∅	0.5"
Nominal ∅	20.0mm
Thread Length (TL)	16mm
Thread Length (TL) (Imperial)	0.63"
Thread Size (Imperial)	1/2 "
Wrenching Flat Size (Imperial)	1.21"
Wrenching Flat Size (Metric)	30.8mm

Downloads

RoHS datasheet

Download

Specifications

CE Certification	No
CSA Certified	No
Halogen-free	Yes
IP-Rating	IP68
Operating Temperature	-60 °C to +85 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN

4031026560410

More Information

UNSPSC Key

39131707
