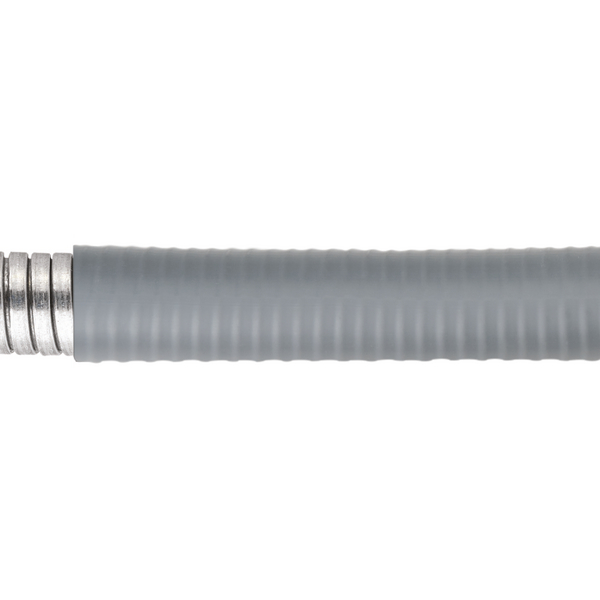

LTS0508-25M-GS/PVC-GY
Art.-No. 166-90388 | LTS0508-25M-GS/PVC-GY |  Details

UV resistant and suitable for outdoor use.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Grey (GY)
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION LTS0508-25M-GS/PVC-GY
    Pack Content 25.0m
    Package Content packed in reel
    Type LTS0508-25M
    Bending Radius min. (R) 65mm
    Diameter (D) 16.0mm
    Length (L) 25.0m
    Nominal ∅ 0.5"
    Nominal ∅ 20.0mm
    Outside Ø (OD) 21.1mm
    Outside ∅ (OD) 0.83"
    Weight 407g/m
    ∅ D 0.63"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -20 °C to +105 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026520605
    Packaging 1 - Weight (kg) 10.18kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    Perfect cable protection with flexible conduits and fittings, braided sleeving, spiral binding and cable protection tubing ...
