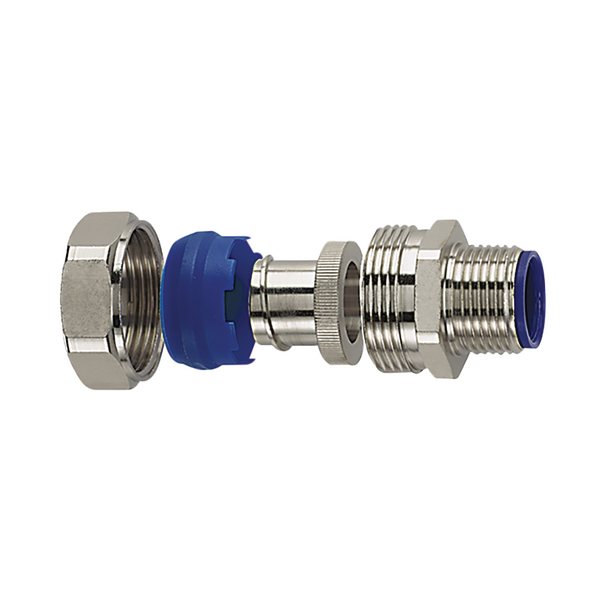

LTS075-FMC-075-NPB/PA6-ML
Art.-No. 166-90400 | LTS075-FMC-075-NPB/PA6-ML |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTS075-FMC-075-NPB/PA6-ML
    Pack Content 10pcs.
    Package Content packed in pack
    Thread type NPT
    Type LTS075-FMC-075
    Variant Straight
    Bore Diameter (Imperial) 0.71"
    Bore Diameter (metric) 18.0
    Height (H) 35.0mm
    Length (L) 41.5mm
    Nominal ∅ 0.75"
    Nominal ∅ 25.0mm
    Thread Length (TL) 15mm
    Thread Length (TL) (Imperial) 0.59"
    Wrenching Flat Size (Imperial) 1.04"
    Wrenching Flat Size (Metric) 26.5mm
    CE Certification No
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026520735
    UNSPSC Key 39131707
