LTS0750-25M-GS/PVC-BK
Art.-No. 166-90382 | LTS0750-25M-GS/PVC-BK |  Details

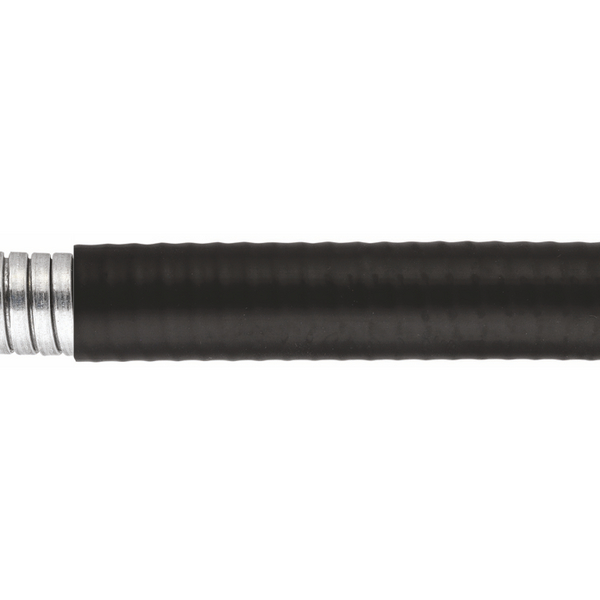

Spiral-wound galvanized steel core with an interlocking design delivers high degree of compression strength and impact resistance.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Galvanised Steel (GS), Polyvinylchloride (PVC)
    PART DESCRIPTION LTS0750-25M-GS/PVC-BK
    Pack Content 25.0m
    Package Content packed in reel
    Type LTS0750-25M
    Bending Radius min. (R) 100mm
    Diameter (D) 21.0mm
    Length (L) 25.0m
    Nominal ∅ 0.75"
    Nominal ∅ 25.0mm
    Outside Ø (OD) 26.4mm
    Outside ∅ (OD) 1.04"
    Weight 503g/m
    ∅ D 0.83"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free No
    Operating Temperature -20 °C to +105 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026520544
    Packaging 1 - Weight (kg) 12.58kg
    Reel Length 82.0ft
    Reel Length 25.0m
    UNSPSC Key 39131706
