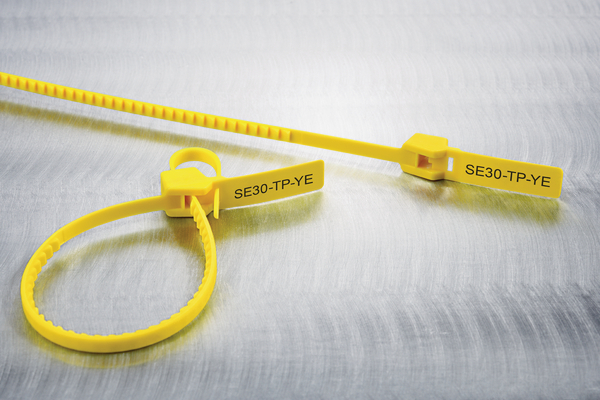

Pull tight seal SE30 length=233mm yellow print with running numbers
Art.-No. 142-10344 | SE30-PA66-YE |  Details

SE30-Series.

    • SD30 features a gripping spike to stop slippage on cloth or textile bags
    • SE30 is commonly used for sealing doors and closures
    • Thermal transfer offset printed for highest clarity print definition
    • Available as sequential alphanumeric text but graphics and barcodes are available on request
    • Tail excess can be tidied away into the ties’ head
    • Print jobs and graphics can be transmitted electronically
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Application HellermannTyton provides a range of Pull Tight Seals that allow an audit trail to be created and easily alert the user if a package or shipment has been tampered with. The SE series are ideal for use in roll cages, duty free trolleys, and other equipment where an audited seal is required. A secondary loop catchment is designed to hold the tie's tail in place.
    Colour Yellow (YE)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION SE30-PA66-YE
    Pack Content 100pcs.
    Package Content packed in pcs.
    Product Family S-Series
    Product Group Custom printed pull tight plastic seals
    Type SE30
    Bundle Diameter max (metric) 41mm
    Bundle ∅ min. 10mm

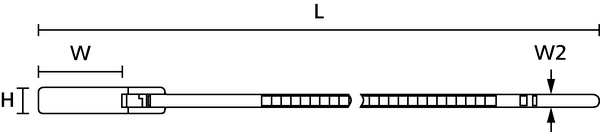

    Height (H) 8.0mm
    Length (L) 233mm
    Min.Tensile Strength 135N
    Print Method hotfoil print
    Width (W) 8.0mm
    Width (W2) 3.8mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 5022660317026
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.356m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00135m³
    Packaging 1 - Weight (kg) 0.2kg
    Packaging 1 - Width (m) 0.152m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Qty 20000
