Aluminium frame mount, T=1.5 – 2.0mm, natural, 100pcs.
Art.-No. 151-01065 | AFLM20-PA66-NA | 세부

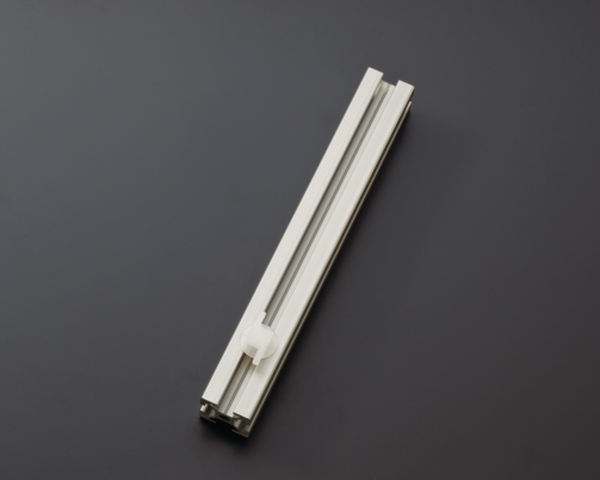

AFLM can be easily attached to aluminum frames, which are indispensable for equipment units used at production sites.
AFLM offers exceptional versatility as it can fit into frames from the major aluminum frame manufacturers.

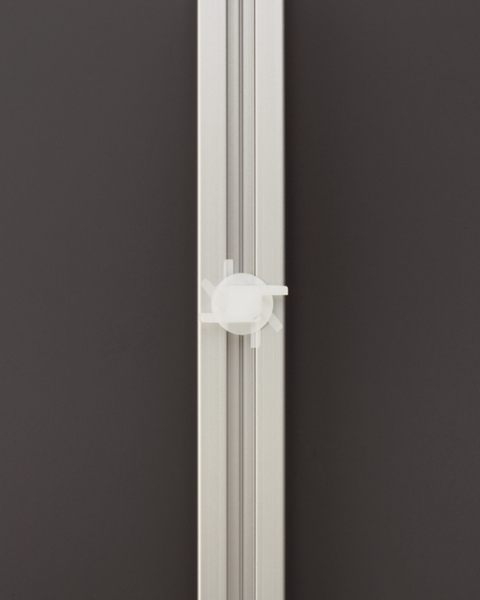

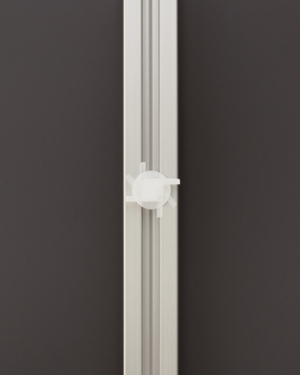

Can be attached to an aluminum frame in just one second. Simply rotate to lock in place.

More products in this product group:

Application	Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles.
Colour	Natural (NA)

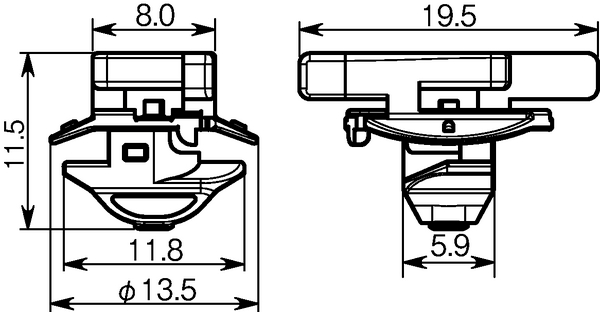

For Pipe Size/Type	Applicable Aluminum Frames: 20mm square type Panel Thickness: 1.5～2mm Slot Width:6mm
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	AFLM20-PA66-NA
Pack Content	100pcs.
Package Content packed in	bag
Product Family	AFLM series
Product Group	Fixing mount for aluminum frame
Type	AFLM20
