Cable tie mount for edge, Wmax=15.0mm, T=0 - 5.0mm, black/green, 200pcs.
Art.-No. 151-01565
| BCAA-PA66HSGF30-BK/GN
|
세부
- Easy to install
- No damage to surfaces
- Easy maintenance of bundle by simply changing cable tie
- Cable tie head can be moved after bundling
- Applicable to a wide range of panel thicknesses
More products in this product group:
| Application | Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting. These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings. |
| Colour | Black (BK), Green (GN) |
| Fixation Method | Edge Clip |
| Key product features | vibration absorbing, for multiple routing |
| Material | Polyamide 6.6, heat stabilised, glass-fibre reinforced (PA66HSGF30) |
| PART DESCRIPTION | BCAA-PA66HSGF30-BK/GN |
| Pack Content | 200pcs. |
| Package Content packed in | bag |
| Product Family | Beam clamps / Wedge clips |
| Product Group | Heavy Duty Harness Clips |
| Type | BCAA |

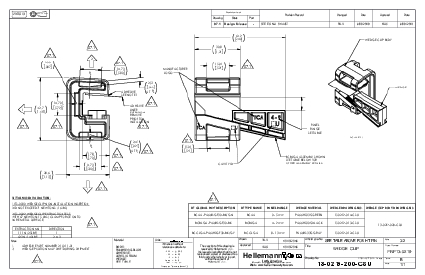

| Height (H) | 43.10mm |
| Height (H2) | 12.5mm |
| Length (L) | 30.8mm |
| Length (L2) | 27.0mm |
| Max. Tie Width (G) | 15.0mm |
| Panel Thickness | 0 - 0.20" |
| Panel Thickness max. | 0 - 5.0mm |
| Panel Thickness max. (imperial) | 0.20" |
| Panel Thickness min. (imperial) | 0" |
| Strap Width max. (G) | 0.59" |
| Width (W) | 28.6mm |
| for Panel Thickness min - max | 0 - 5 mm |
다운로드
| Adhesive | Acrylic foam |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +140 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026550701 |
| Packaging 1 - Height (m) | 0.16m |
| Packaging 1 - Length (m) | 0.59m |
| Packaging 1 - Qty | 200 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.03115m³ |
| Packaging 1 - Weight (kg) | 4.456001kg |
| Packaging 1 - Width (m) | 0.33m |
| Packaging 3 - Height (m) | 0.37668199999999996m |
| Packaging 3 - Length (m) | 0.5902959999999999m |
| Packaging 3 - Qty | 600 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0635m³ |
| Packaging 3 - Weight (kg) | 14.15kg |
| Packaging 3 - Width (m) | 0.285496m |
| Packaging 4 - Height (m) | 1.276m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 7200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.225m³ |
| Packaging 4 - Weight (kg) | 191.616kg |
| Packaging 4 - Width (m) | 0.8m |
