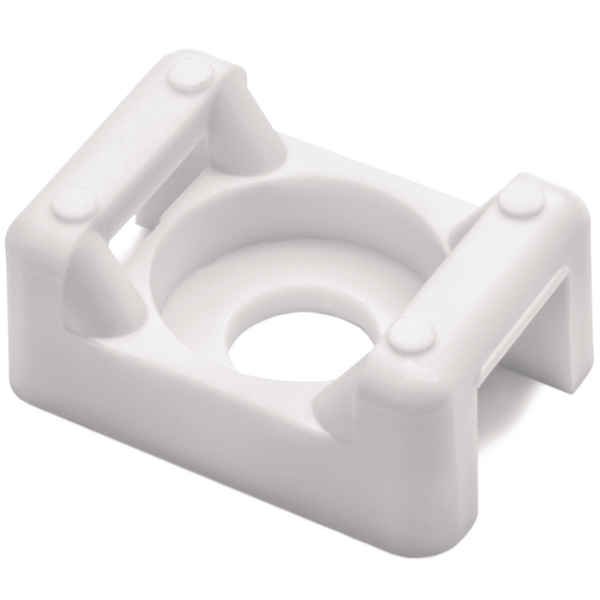

Cable tie mount for screw fixation, Wmax=7.9mm, ∅5.1 mm, #10 (M5) Screw, white, 100pcs.
Art.-No. 151-30605
| CTM3-PA66-WH
|
세부
- Curved design for additional cable support
- Simple to install with a screw or bolt
- Excellent security, particularly in areas of high vibration
- Mounts are available in various sizes and materials
More products in this product group:
| Application | Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width. |
| Colour | White (WH) |
| Fixation Method | Screw Mount |
| For Ties | T18 - T120 |
| Material | Polyamide 6.6 (PA66) |
| Mounting Screw Type | #10 (M5) Screw |
| PART DESCRIPTION | CTM3-PA66-WH |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | CTM with curved design for big bundle diameters |
| Product Group | Screw fixing mounts |
| Type | CTM3 |
다운로드
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B |
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E64139 |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026312583 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.25m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00094m³ |
| Packaging 1 - Weight (kg) | 0.166001kg |
| Packaging 1 - Width (m) | 0.125m |
| Packaging 3 - Height (m) | 0.20002499999999998m |
| Packaging 3 - Length (m) | 0.51117499999999995m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0318m³ |
| Packaging 3 - Width (m) | 0.31115m |
CTM3
151-30600
CTM3
151-30604
