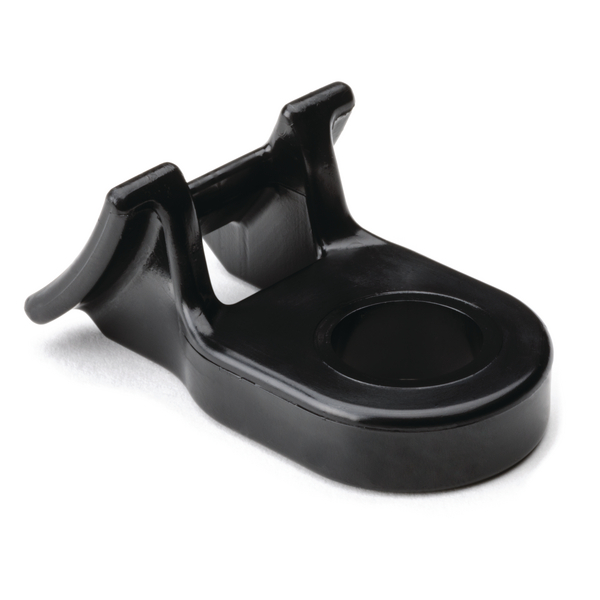

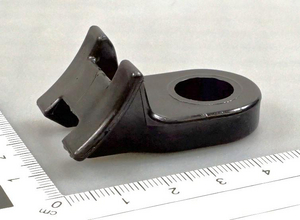

Cable tie mount for screw fixation, Wmax=12.7mm, ∅12.7 mm, ∅12.0 mm, 1/2" (M12) Screw, black, 500pcs.
Art.-No. 151-07500
| HDM501-PA66HIRHSUV-BK
|
세부
- Design offers secure alignment to the bundle
- Possible replacement of cushion clamps and/or metal clamps
- Eliminates the needs for multiple sized fix diameter clamps
- For heavy duty cable ties up to 13.5 mm width
- Easy maintenance of bundle by simply changing the cable tie
More products in this product group:
| Application | These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Key product features | vibration absorbing |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Mounting Screw Type | 1/2" (M12) Screw |
| PART DESCRIPTION | HDM501-PA66HIRHSUV-BK |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | Medium Torque Mounts |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts |
| Type | HDM501 |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Max. Torque (kgf-cm) | 553kgf-cm |
| Max. Torque (lbf-In) | 40lbf-ft |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026266374 |
| Packaging 1 - Height (m) | 0.17m |
| Packaging 1 - Length (m) | 0.429m |
| Packaging 1 - Qty | 500 |

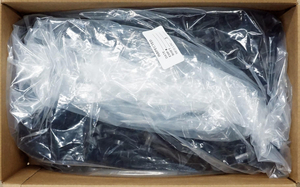

| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01889m³ |
| Packaging 1 - Weight (kg) | 3.41kg |
| Packaging 1 - Width (m) | 0.259m |
| Packaging 3 - Height (m) | 0.1508125m |
| Packaging 3 - Length (m) | 0.4365625m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0176m³ |
| Packaging 3 - Weight (kg) | 3.84kg |
| Packaging 3 - Width (m) | 0.2667m |
| Packaging 4 - Height (m) | 1.25m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 21000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.2m³ |
| Packaging 4 - Weight (kg) | 171.003kg |
| Packaging 4 - Width (m) | 0.8m |
