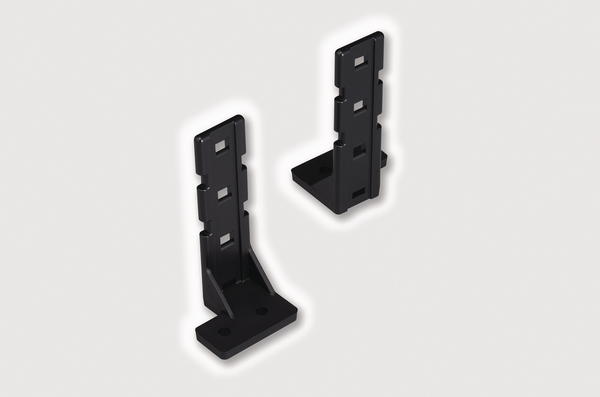

Cable tie mount for screw fixation, Wmax=5.6mm, ∅4.2 mm, ∅M4, M4 Screw, black, 25pcs.
Art.-No. 151-03367 | LCS3HM4-PA66HSW-BK 세부

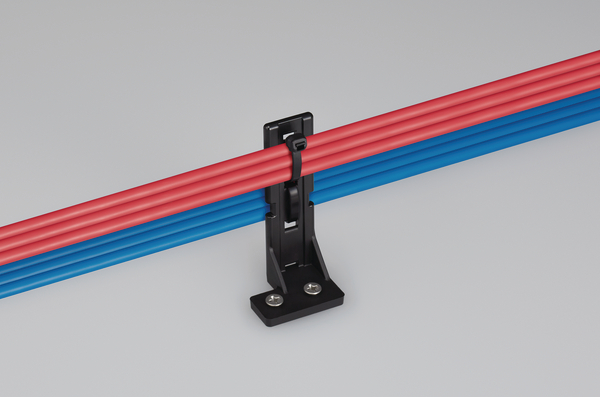

Application Cable Support are specially designed to support cables in railway vehicles but can be used in any other industires. It offers easy installation using cable ties.
Colour Black (BK)
Fixation Method Screw Mounting and Rivet
Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
Mounting Screw Type M4 Screw
PART DESCRIPTION LCS3HM4-PA66HSW-BK
Pack Content 25pcs.
Package Content packed in bag
Product Family Cable support
Product Group Screw fixing mounts
Type LCS3HM4
Height (H) 28mm
Length (L) 70mm
Max. Tie Width (G) 5.6mm
Stud ∅ M4
Width (W) 33mm
for Hole ∅ (FH) 4.2 mm
Flammability UL 94 V2
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4944387122640
UNSPSC Key 39121717
