Cable tie mount for adhesive use, Wmax=4.7mm, black, 100pcs.
Art.-No. 151-02575
| PMB3-PA666V0-BK
|
세부

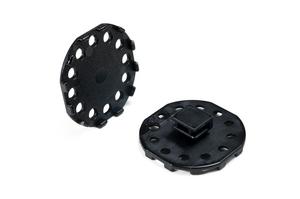

- PMB3 paste adhesive mount for fixings with paste / liquid adhesive
- Mount geometry offers a good form closure with cured adhesive
- Can even be installed onto uneven surfaces
- Designed for use in confined spaces
- Made of flame-retardant material PA666V0
- Cost efficiency through reduced use of paste adhesive
More products in this product group:
| Application | PMB3 paste mount offers a fixing solution wherever screw fixing is not allowed. Due to the design the mount can even be installed onto uneven surfaces. PMB3 paste mount is used in the railway industry as well as in the renewable energy industry. Further applications are in the electrical industry and the production of switching cabinets. The PMB3 paste adhesive mount is suitable for fixings with paste/liquid adhesive. |
| Colour | Black (BK) |
| Fixation Method | Pasting / Stick |
| Key product features | liquid/paste adhesive, uneven surfaces |
| Material | Polyamide 6.6/6, V0 (PA666V0) |
| PART DESCRIPTION | PMB3-PA666V0-BK |
| Pack Content | 100pcs. |
| Package Content packed in | box |
| Product Family | PMB-Series |
| Product Group | Paste adhesive mount |
| Type | PMB3 |
다운로드
|
|
|
| GTIN-13 / EAN | 4031026613635 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 0.12m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00127m³ |
| Packaging 1 - Weight (kg) | 0.09551kg |
| Packaging 1 - Width (m) | 0.265m |
| Packaging 3 - Height (m) | 0.133m |
| Packaging 3 - Length (m) | 0.33m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0105m³ |
| Packaging 3 - Weight (kg) | 2.1552kg |
| Packaging 3 - Width (m) | 0.24m |
| Packaging 4 - Height (m) | 1.208m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 160000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.16m³ |
| Packaging 4 - Weight (kg) | 194.2kg |
| Packaging 4 - Width (m) | 0.8m |
PMB5
151-02255
