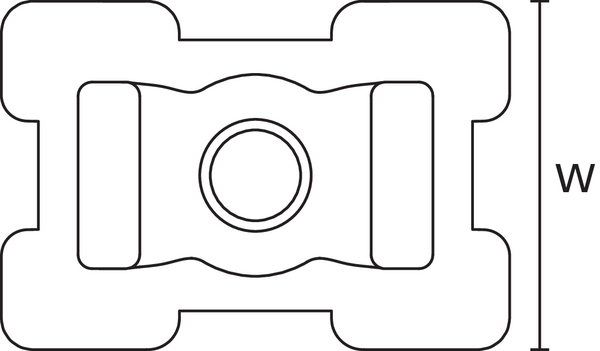

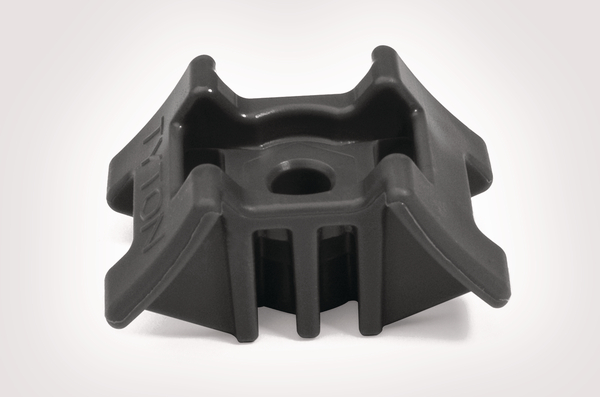

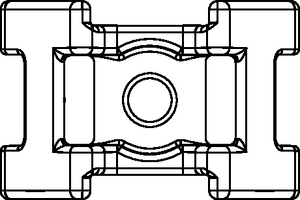

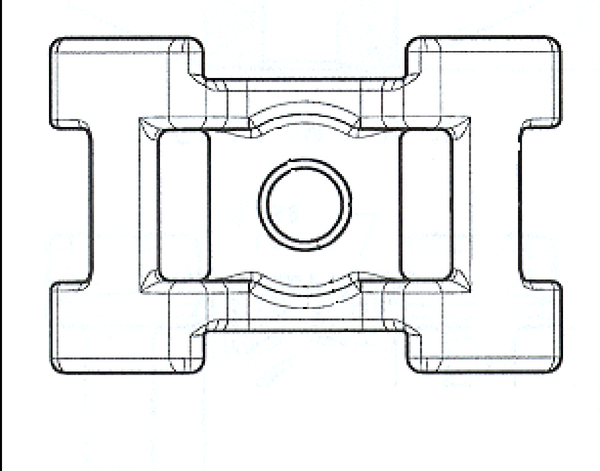

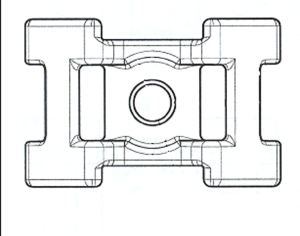

Cable tie mount for screw fixation, Wmax=13.5mm, ∅6.0 mm/6.35 mm (hexagonal), ∅6.35 mm, #1/4" (M6) Screw, black, 500pcs.
Art.-No. 151-00798
| S2CM25-PET-BK
|
세부
- For parallel routing of different bundles to avoid wear and chafing
- Offers secure alignment to the bundle
- Can be used in combination with heavy duty cable ties
- Easy maintenance of bundle by simply changing the cable tie
- Made from impact modified, heat stabilized material
- S2HM25 can be used with hex head screws 6.35
More products in this product group:
| Application | Heavy duty saddle mounts can be installed between two bundles to separate them and prevent chafing and wear. Fastened to a frame rail or mounting bracket, the special profile on the saddle mount provides a tight circumferential loop on large and small bundles. The saddle mount is an ideal assistant in many applications within the railway, truck and agricultural vehicle construction as well as in the ship building industry. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Key product features | vibration absorbing, for multiple routing |
| Material | Polyester (PET) |
| Mounting Screw Type | #1/4" (M6) Screw |
| PART DESCRIPTION | S2CM25-PET-BK |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | S-Series |
| Product Group | Two way saddle mount for heavy duty applications, for parallel separation |
| Type | S2CM25 |
다운로드

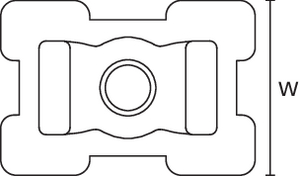

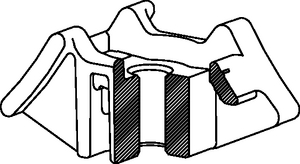

S2CM25
151-29400
S2CM25
151-29401
S2HM25
151-29403
SE30
142-10344
