Cable tie inside serrated, 250.0x4.6mm, ∅5.0-65.0mm, blue, 100pcs.
Art.-No. 115-00113 | MCTRELK2M-PA66MD-BU 세부

  • Total metal dispersion throughout the tie

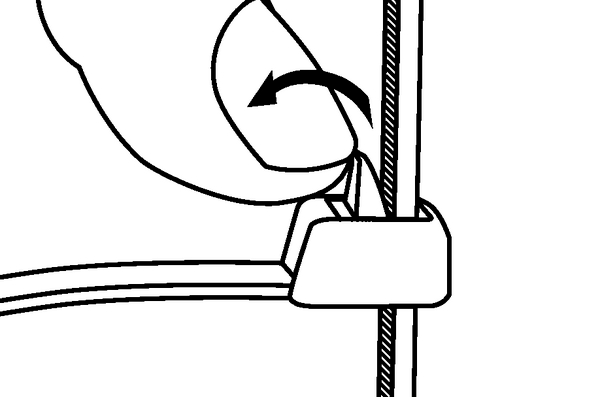

  • Can be reopened and reused
  • Supports quality processes around the production of food stuffs
  • Blue colour most common for easy visual detection
  • Greatly reduces risk of contamination
  • Magnetic detectable (detection level depending on specific application)
Show more
Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installaton of cabling in and around the manufacturing process. The MCTRELK ties do have a releasable function thus they can be reopened and reused.
Colour Blue (BU)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features detectable
Material Polyamide 6.6, metal detectable (PA66MD)
PART DESCRIPTION MCTRELK2M-PA66MD-BU
Pack Content 100pcs.
Package Content packed in bag
Product Family MCT-Series releasable, PA66MP
Product Group Cable ties for food industry, detectable, reusable
Releasable Closure (Yes/No) Yes
Tie Closure plastic pawl
Type MCTRELK2M
Variant Inside Serrated
Bundle Diameter max (metric) 65.0mm
Bundle ∅ min. 5.0mm
Length (L) 250.0mm
Min.Tensile Strength 150N
Thickness (T) 1.5mm
Width (W) 4.6mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4944387104769
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.36m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00162
Packaging 1 - Weight (kg) 0.220001kg
Packaging 1 - Width (m) 0.15m
UNSPSC Key 39121703
