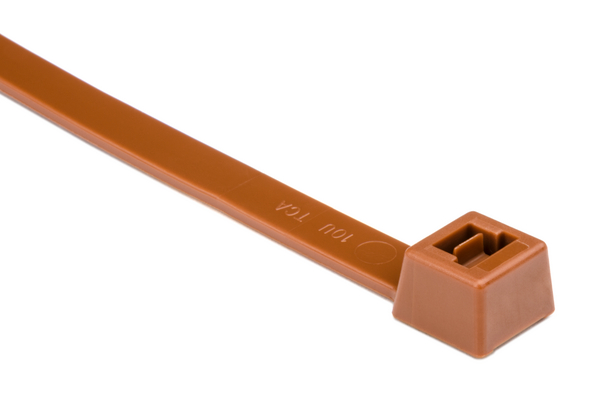

Cable tie inside serrated, 300.0x7.6mm, ∅5.0-80.0mm, brown, 500pcs.
Art.-No. 111-01619
| T120I-PA46-BN
|
세부
- Available in a wide range of material and sizes
- Made from 100% high quality plastic, allows for good recycling
- Inside serration for a strong hold onto bundles.
- Easy application either manually or with a processing tool
- Simply to insert due to bent tail
More products in this product group:
| Application | T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications. |
| Colour | Brown (BN) |
| Identification Plate Position | none |
| Material | Polyamide 4.6 (PA46) |
| PART DESCRIPTION | T120I-PA46-BN |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Family | T-Series in PA46 |
| Product Group | Cable Ties for temperatures up to + 195 °C (500 h) in Polyamide 4.6 |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T120I |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 80.0mm |
| Bundle ∅ min. | 5.0mm |
| Cable Tie Head Length (metric) | 10.2mm |
| Cable Tie Head Width (metric) | 13.0mm |
| Height (H) | 7.7mm |
| Length (L) | 300.0mm |
| Max. Tie Width (G) | 7.61mm |
| Min.Tensile Strength | 535N |
| Strap Width max. (G) | 0.30" |
| Strap Width max. (G) | 0.51" |
| Thickness (T) | 1.6mm |
| Width (W) | 7.6mm |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Limited Fire Hazard | Yes |
| Operating Temperature | -40 °C to +130 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026485751 |
| Packaging 1 - Height (m) | 0.063m |
| Packaging 1 - Length (m) | 0.507m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00971m³ |
| Packaging 1 - Weight (kg) | 1.500001kg |
| Packaging 1 - Width (m) | 0.304m |
| Packaging 3 - Height (m) | 0.142875m |
| Packaging 3 - Length (m) | 0.5159375m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0229m³ |
| Packaging 3 - Weight (kg) | 5.3kg |
| Packaging 3 - Width (m) | 0.31115m |
| Packaging 4 - Height (m) | 1.16m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 28000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.114m³ |
| Packaging 4 - Weight (kg) | 119.28kg |
| Packaging 4 - Width (m) | 0.8m |
