Cable tie inside serrated, 390.0x4.8mm, ∅1.5-110.0mm, black, 1000pcs.
Art.-No. 111-05472 | T50L-PA66HSUV-BK 세부

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more

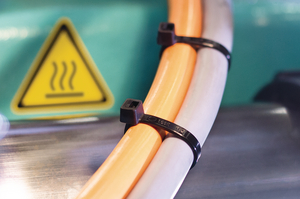

Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Colour Black (BK)
Identification Plate Position none
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
PART DESCRIPTION T50L-PA66HSUV-BK
Pack Content 1000pcs.
Package Content packed in bag
Product Family T-Series in PA66HSW
Product Group Cable Ties for outdoor use at higher temperatures
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50L
Variant Inside Serrated
Bundle Diameter max (metric) 110.0mm
Bundle ∅ min. 1.5mm
Cable Tie Head Length (metric) 7.2mm
Cable Tie Head Width (metric) 8.1mm
Length (L) 390.0mm
Min.Tensile Strength 225N
Strap Width max. (G) 0.32"
Thickness (T) 1.4mm
Width (W) 4.8mm
CE Certification Yes
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Type 11
UL-File Number E64139
UV-Stabilised Yes
GTIN-13 / EAN 4031026311944
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.6m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.003
Packaging 1 - Weight (kg) 2.700001kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.2159m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Width (m) 0.396875m
Packaging 4 - Qty 75000
UNSPSC Key 39121703
