Cable tie inside serrated, 150.0x3.9mm, ∅4.5-36mm, white, 100pcs.
Art.-No. 111-02208 | TBT150-PA9THS-WH 세부

  • Primarily designed for fixing medical tubes and hoses
  • The round-edge head allows circular surface contact
  • Head structure that leaves little of the tail exposed after the cable tie is cut off
  • Chamfered head ensures secure and damage-free hold around the entire perimeter of the tubing, and for each connector
  • Internal serration
  • Excellent performance in a high temperature autoclave (up to +150°C)
  • Excellent resistance to chemicals
  • Resistant to abrasion
  • Fast and easy to position by hand, or using our EV07 manual tensioning tool
Show more
Application The TBT cable tie withstands physical sterilisation processes. The chamfered head of this cable tie is a great asset, because it is formed to fit exactly the shape of the tubing, and thus enables secure coupling. This fixing solution for tubing fitments requiring autoclaving can be used by hospitals, manufacturers of medical devices, pharmaceutical companies and sterilisation treatment services. - All applications using an autoclave process - Can be used for tube connectors requiring autoclaving
Colour White (WH)
Identification Plate Position none
Material Polyamide 9T, heat stabilised (PA9THS)
PART DESCRIPTION TBT150-PA9THS-WH
Pack Content 100pcs.
Package Content packed in bag
Product Family TBT-Series
Product Group Sterilisable cable tie formed to fit the shape of tubing
Releasable Closure (Yes/No) No
Type TBT150
Variant Inside Serrated
Bundle Diameter max (metric) 36mm
Bundle ∅ min. 4.5mm
Cable Tie Head Height (metric) 6.6mm
Cable Tie Head Length (metric) 6.0mm
Cable Tie Head Width (metric) 6.8mm
Length (L) 150.0mm
Min.Tensile Strength 240N
Thickness (T) 1.3mm
Width (W) 3.9mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +150 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4944387114898

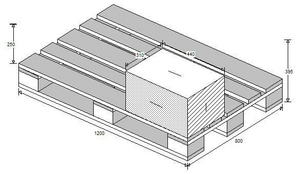

Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 0.840001kg

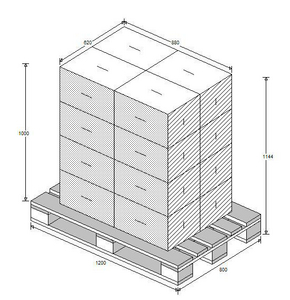

Packaging 3 - Qty 10000
Packaging 4 - Qty 240000
UNSPSC Key 39121703
