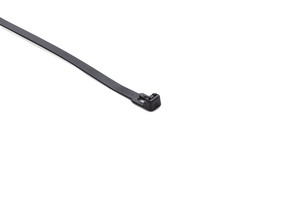

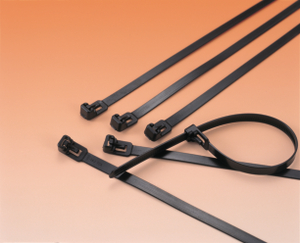

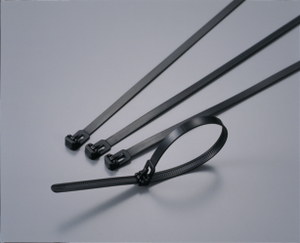

Releasable cable tie, 250.0x7.4mm, ∅2.5-72.0mm, 225N, black, 100pcs.
Art.-No. 115-00049 | RF250-PA66-BK 세부

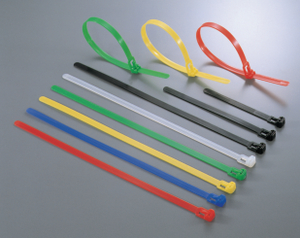

  • Variety of colors are prepared for identification purposes
Application Can be used for temporal bandling, cable identification, and as packing material.
Colour Black (BK)
Fixation Method Releasable Cable Tie
Identification Plate Position none
Key product features releasable
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RF250-PA66-BK
Pack Content 100pcs.
Package Content packed in bag
Product Family RF Series
Product Group Reusable tie
Releasable Closure (Yes/No) Yes
Type RF250
Bundle Diameter max (metric) 72.0mm
Bundle ∅ min. 2.5mm
Cable Tie Head Height (metric) 7.8mm
Cable Tie Head Length (metric) 19mm
Cable Tie Head Width (metric) 11.0mm
Length (L) 250.0mm
Min.Tensile Strength 225N
Thickness (T) 1.2mm
Width (W) 7.4mm
CE Certification No
CSA Certified No
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL OCD link Link
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) No
UL-File Number E64962
UV-Stabilised No
GTIN-13 / EAN 4944387218091
Packaging 3 - Weight (kg) 15.48kg
UNSPSC Key 39121703
