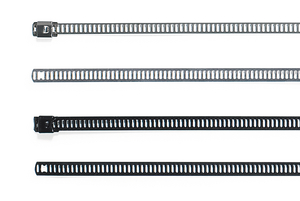

Stainless steel cable tie, ladder style, 430x7.0mm, ∅10.0-120mm, black, 100pcs.
Art.-No. 111-92162 | MAT16SSC7-SS316/SP-BK 세부

  • MAT ties are similar to conventional 'plastic' cable ties
  • Work on ratchet system
  • Available in type 316 stainless steel
Application The MAT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from Mass Transit, Ship building, oil rigs, mining, & chemical to theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits.
Colour Black (BK)
Identification Plate Position none
Key product features vibration absorbing
Material Stainless Steel (SS316), Polyester (SP)
PART DESCRIPTION MAT16SSC7-SS316/SP-BK
Pack Content 100pcs.
Package Content packed in bag
Product Family MAT-C
Product Group Cable Ties with Raster Locking and Coating
Releasable Closure (Yes/No) No
Tie Closure ladder style
Type MAT16SSC7
Variant Not Serrated
Bundle Diameter max (metric) 120mm
Bundle ∅ min. 10.0mm
Length (L) 430mm
Min.Tensile Strength 445N
Thickness (T) 0.40mm
Width (W) 7.0mm
ELV compliant (Article 4 - 2) YES
Flammability non-burning (except coating)
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
Operating Temperature Coating -50 °C to +150 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 5022660019654
Packaging 1 - Height (m) 0.035m
Packaging 1 - Length (m) 0.389m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00123
Packaging 1 - Weight (kg) 1.000001kg
Packaging 1 - Width (m) 0.09m
Packaging 3 - Height (m) 0.115m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 2000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0179
Packaging 3 - Weight (kg) 20.5kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 574.5kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
