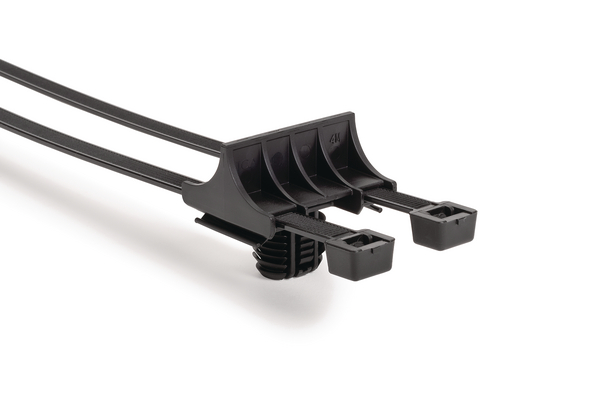

Fixing tie, inside serrated, ∅5.0-105.0mm, black, 500pcs.
Art.-No. 156-04007 | T120R2xDHVSDL12x17-PA66HIRHSUV-BK | 세부

Cable Tie	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Colour	Black (BK)
Fixation Method	Fir tree for round holes
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T120R2xDHVSDL12x17-PA66HIRHSUV-BK
Pack Content	500pcs.
Package Content packed in	carton
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T120R2xDHVSDL12x17
Variant	Inside Serrated

Bundle Diameter max (metric)	105.0mm
Bundle ∅ min.	5.0mm
Height (H)	34.74mm
Height (H2)	13.07mm
Hole Depth	6.75mm
Hole Depth	0.60mm
Length (L)	203.2mm
Min.Tensile Strength	535N
Panel Thickness	0.02 - 0.26"
Panel Thickness max.	0.6 - 6.75mm
Panel Thickness max. (imperial)	0.26"
Panel Thickness min. (imperial)	0.02"
Thickness (T)	1.8mm
Width (W)	7.6mm
Width (W2)	1.26"
Width (W2)	32.0mm
for Hole ∅ (FH)	12.0 x 17.0 mm
for Panel Thickness min - max	0 - 0.3 "
for Panel Thickness min - max	0.6 - 6.8 mm
