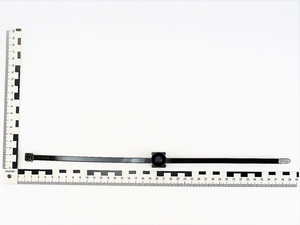

Fixing tie for hole (round), inside serrated, ∅5.0-105.0mm, black, 100pcs.
Art.-No. 156-00067 | T120RFT9A-PA66HIRHSUV-BK | 세부

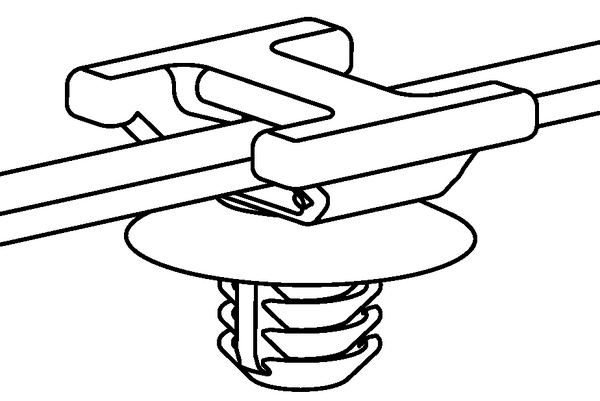

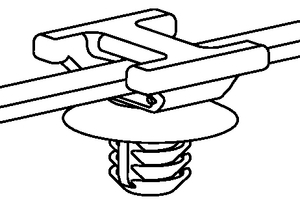

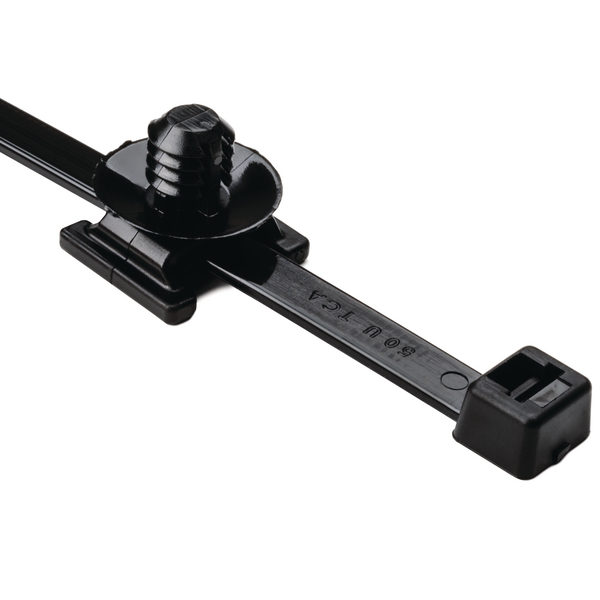

Pre-assembled 2-piece fixing tie with fir tree foot part
Cable tie head can be moved after bundling
Easy to assemble without the need for a tool
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes

More products in this product group:

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Fixation Method	Fir tree for round holes
Foot Part	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T120RFT9A-PA66HIRHSUV-BK

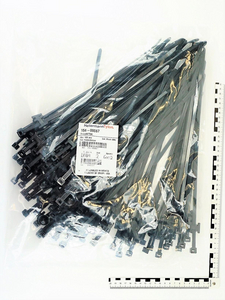

Pack Content	100pcs.
Package Content packed in	bag
Product Family	Fir tree parts FT9
Product Group	2-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T120RFT9A
Variant	Inside Serrated


Bundle Diameter max (metric)	105.0mm
Bundle ∅ min.	5.0mm
Disc ∅	21.6mm
Disc ∅	0.85"
Height (H)	19.1mm
Height (H2)	9.0mm
Length (L)	380.0mm
Length (L2)	22.6mm
Min.Tensile Strength	535N
Panel Thickness	0.04 - 0.26"
Panel Thickness max.	1.0 - 6.5mm
Panel Thickness max. (imperial)	0.26"
Panel Thickness min. (imperial)	0.04"
Thickness (T)	1.8mm
Width (W)	7.6mm
Width (W2)	20.3mm
Width (W2)	0.8"
for Hole ∅ (FH)	8.7 - 9.2 mm
for Panel Thickness min - max	0 - 0.3 "
for Panel Thickness min - max	1 - 6.5 mm
