Fixing tie for hole (round), outside serrated, ∅20.0mm, black, 100pcs.
Art.-No. 156-00352 | T18ROSFT3-PA66HS/PA66HSUV-BK | 세부

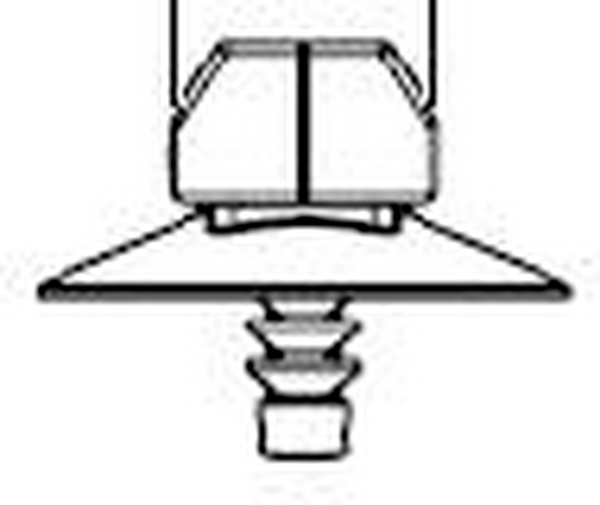

Pre-assembled 2-piece fixing tie with fir tree foot part
Cable tie head can be moved after bundling
Easy to assemble without the need for a tool
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes

More products in this product group:

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Colour	Black (BK)
Description	These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method	Fir Tree
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Mounting Screw Type	M3 Screw
PART DESCRIPTION	T18ROSFT3-PA66HS/PA66HSUV-BK
Pack Content	100pcs.
Package Content packed in	bag
Product Family	Fir tree parts FT3
Product Group	2-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T18ROSFT3
Variant	Outside Serrated
