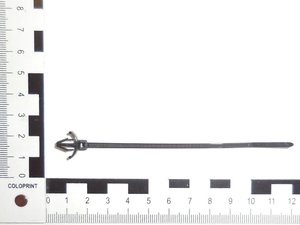

Fixing tie for hole (round), inside serrated, ∅1.6-22.0mm, black, 1000pcs.
Art.-No. 126-00232
| T18RWPM-PA66HS-BK
|
세부
- Easy to assemble without the need for a tool
- Cable tie head always situated in defined position
- Arrowhead simply locks into place
- Supporting legs provide a secure and firm fixing in areas where space is limited
More products in this product group:
Application | For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building. |
Colour | Black (BK) |
Fixation Method | arrowhead |
Identification Plate Position | none |
Material | Polyamide 6.6, heat stabilised (PA66HS) |
PART DESCRIPTION | T18RWPM-PA66HS-BK |
Pack Content | 1000pcs. |
Package Content packed in | bag |
Product Family | for round holes |
Product Group | 1-piece fixing ties with arrowhead, with wings |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T18RWPM |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 22.0mm |
Bundle ∅ min. | 1.6mm |
Disc ∅ | 13.2mm |
Height (H) | 5.8mm |
Length (L) | 113.0mm |
Min.Tensile Strength | 80N |
Panel Thickness | 0.06 " – 0.09" |
Panel Thickness max. | 1.50 – 3.20mm |
Panel Thickness max. (imperial) | 0.087" |
Panel Thickness min. (imperial) | 0.059" |
Thickness (T) | 1.1mm |
Width (W) | 2.5mm |
Width (W2) | 6.4mm |
for Hole ∅ (FH) | 4.8 - 5.6 mm |
for Panel Thickness min - max | 1.5 - 2.2 mm |
for Panel Thickness min - max | 0.1 - 0.1 " |
ELV compliant (Article 4 - 2) | YES |
Flammability | UL 94 V2 |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
Specifications | ANSI/UL 62275, csa-C22.2 no. 62275 |
UL OCD link | Link |
UL Recognized (US and Canada) | Yes |
UL-File Number | E85319 |
|
|
GTIN-13 / EAN | 4031026495354 |

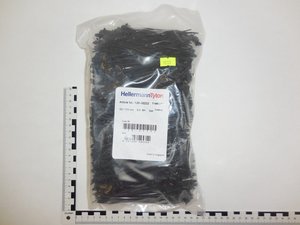

Packaging 1 - Qty | 1000 |
Packaging 1 - Type | bag |
Packaging 1 - Weight (kg) | 0.455001kg |
Packaging 3 - Height (m) | 0.218m |
Packaging 3 - Length (m) | 0.599m |
Packaging 3 - Qty | 16000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0522m³ |
Packaging 3 - Weight (kg) | 8.03kg |
Packaging 3 - Width (m) | 0.4m |
Packaging 4 - Height (m) | 1.24m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 320000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.19m³ |
Packaging 4 - Weight (kg) | 181.6kg |
Packaging 4 - Width (m) | 0.8m |
