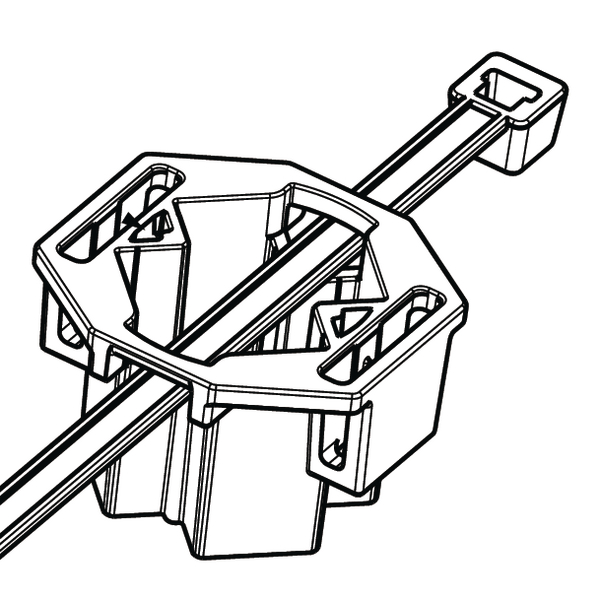

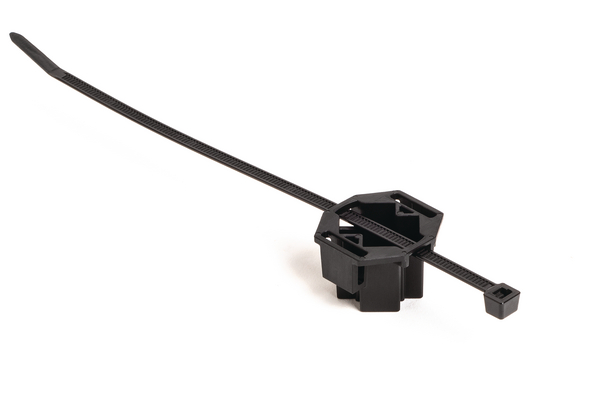

Fixing tie with pipe/tube holder, ∅10.0-45.0mm, black, 1000pcs.
Art.-No. 156-03390 | T50R0SBS12A-SET-PA66HIRHSUV-BK 세부

Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Colour Black (BK)
Fixation Method Stud Mount
For Ties T50R, T120R0HSH4
Identification Plate Position none
Key product features rotatable, for multiple routing, removable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T50R0SBS12A-SET-PA66HIRHSUV-BK
Pack Content 1000pcs.
Package Content packed in carton
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50R0SBS12A-SET
Bundle Diameter max (metric) 45.0mm
Bundle ∅ min. 10.0mm
Height (H) 20.4mm
Height (H2) 12.1mm
Length (L) 203.2mm
Min.Tensile Strength 223N
Stud ∅ 0.47"
Stud ∅ 12.0 mm
Width (W) 30.1mm
Width (W2) 1.26"
Width (W2) 32mm
for Hole ∅ (FH) M12
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026660455
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Width (m) 0.3175m
UNSPSC Key 39121703
