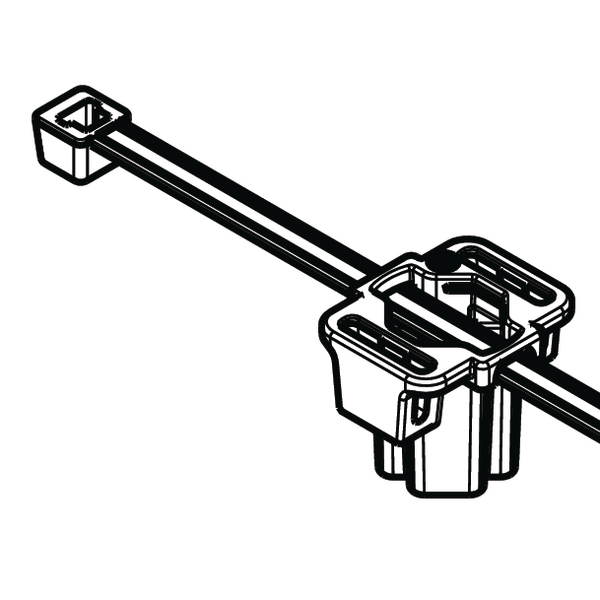

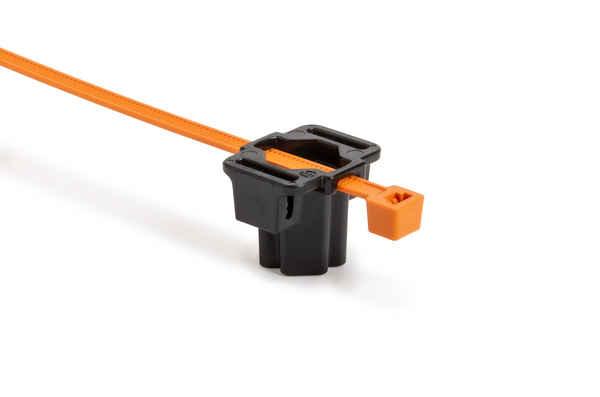

Fixing tie for stud, ∅4.0-50.0mm, orange/black, 3000pcs.
Art.-No. 156-04041 | T50R0SBS5-6U-SET-PA66HIRHS/PA66HIRHSW-OG/BK | 세부

Base Data

Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Orange (OG), High Voltage (HV), Black (BK)
Fixation Method	Stud Mount
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
PART DESCRIPTION	T50R0SBS5-6U-SET-PA66HIRHS/PA66HIRHSW-OG/BK
Pack Content	3000pcs.
Package Content packed in	carton
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50R0SBS5-6U-SET

Product Dimensions

Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	4.0mm
Height (H)	18.75mm
Length (L)	202.0mm
Min.Tensile Strength	222N
Strap Width max. (G)	0.22"
Stud ∅	0.20 ", 0.24"
Stud ∅	5.0 mm, 6.0 mm
Width (W)	4.6mm
for Hole ∅ (FH)	M5 x 0.8, M6 x 1, T5

Downloads

RoHS datasheet

다운로드

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +110 °C
ROHS compliant	Yes
Specifications
UL Recognized (US and Canada)	No
UV-Stabilised	No

Logistics and Packaging

GTIN-13 / EAN	4031026665818
Packaging 3 - Height (m)	0.210m
Packaging 3 - Length (m)	0.605m
Packaging 3 - Qty	3000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0502m³
Packaging 3 - Weight (kg)	12.4kg
Packaging 3 - Width (m)	0.395m
Packaging 4 - Qty	90000
Packaging 4 - Type	pallet

More Information

UNSPSC Key

39121703
