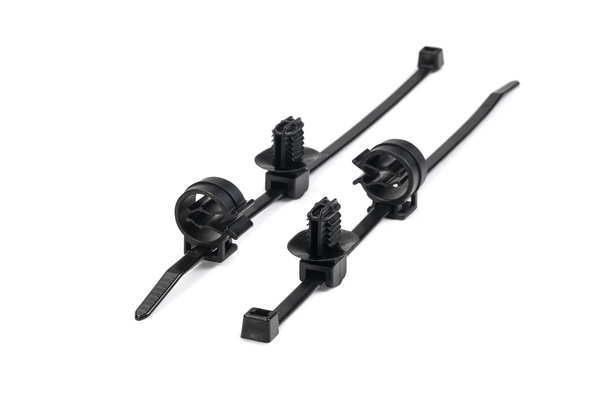

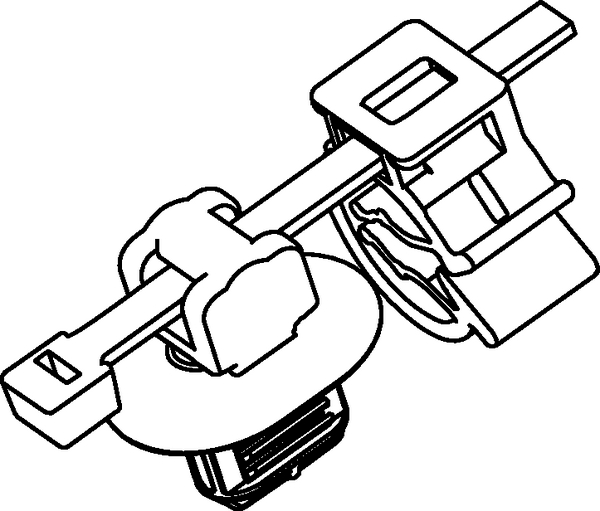

Fixing tie with pipe/tube holder, ∅45.0mm, black, 500pcs.
Art.-No. 156-02548 | T50R6DOPOC1B-PA66HS/PA66HIRHS-BK | 세부

More products in this product group:

2-piece fixing ties with pipe clip >

Base Data

Application Tool	MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Fixation Method	Omega Clip
Foot Part	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50R6DOPOC1B-PA66HS/PA66HIRHS-BK
Pack Content	500pcs.
Package Content packed in	bag
Product Group	2-piece fixing ties with pipe clip
Type	T50R6DOPOC1B

Product Dimensions

Attach to Ø	4.0 - 10.0
Bundle Diameter max (metric)	45.0mm
Length (L)	200.0mm
Min.Tensile Strength	225N
Panel Thickness max.	0.6-6.0mm
Thickness (T)	1.2mm
Width (W)	4.6mm
for Hole ∅ (FH)	6.2 x 12.2 mm
for Panel Thickness min - max	0.6 - 6 mm

Downloads

Specifications

Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

4031026611396

More Information

UNSPSC Key

39121702

Accessories
