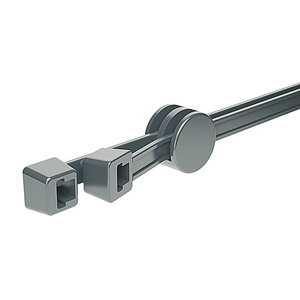

Fixing tie for cable bundles, inside serrated, ∅2.0-47.0mm, grey, 500pcs.
Art.-No. 156-00382 | T50RCOUPLER-PA46-GY | 세부

More products in this product group:

本製品は、その一部です。

Application	The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
Cable Tie	Polyamide 4.6 (PA46)
Colour	Grey (GY)
Description	The Coupler is the simple way to connect two cable ties for a parallel routing of two bundles. His special design allows the ties 90 degrees of rotation. This is ideal for all applications where the cable, pipe or hose should move flexible in relation to the fixing point. The Coupler can be used with one or two cable ties. This allows easily subsequent installation or replacements of further cables, pipes or hose.
Foot Part	Polyamide 4.6 (PA46)
Identification Plate Position	none
Key product features	for multiple routing
Material	Polyamide 4.6 (PA46)
PART DESCRIPTION	T50RCOUPLER-PA46-GY
Pack Content	500pcs.
Package Content packed in	bag
Product Family	T50RCoupler for max. bundle diameter 2 x 47.0 mm
Product Group	2-piece fixing ties for parallel separation
Tie Closure	plastic pawl
Type	T50RCOUPLER
Variant	Inside Serrated

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 V2
Hazardous Goods	No
Operating Temperature	-40 °C to +150 °C
Operating Temperature Foot Part (Metric)	-40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ROHS compliant	Yes
