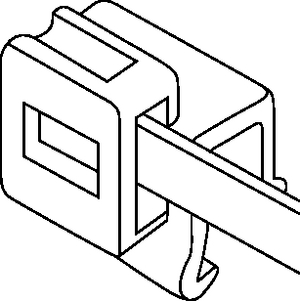

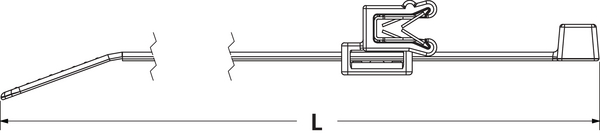

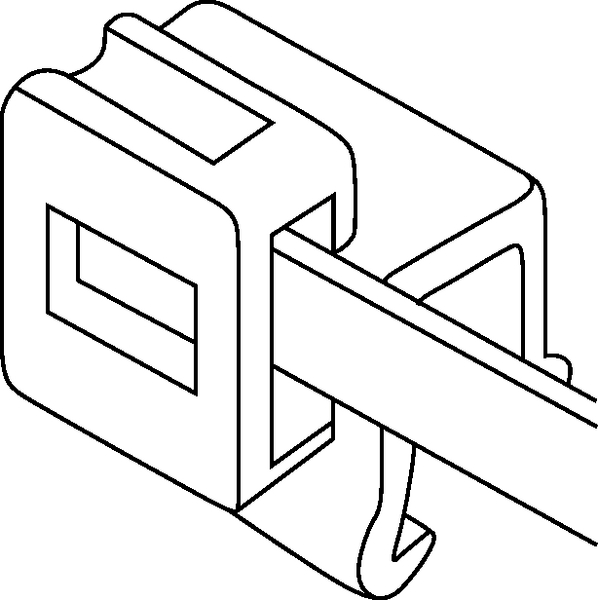

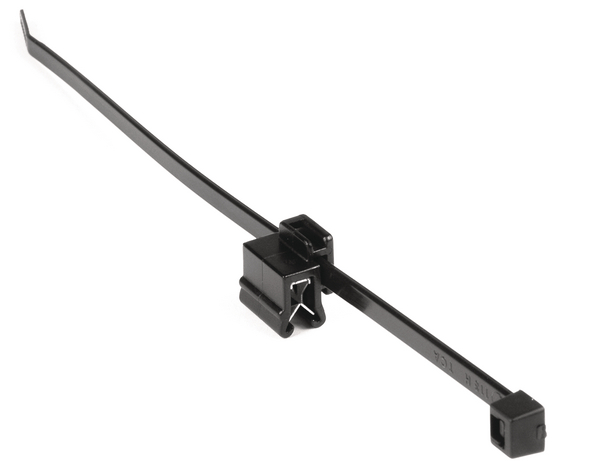

Fixing tie for edge, inside serrated, ∅4.0-45.0mm, grey, 500pcs.
Art.-No. 156-03361 | T50REC5B-PA46-GY | 세부

More products in this product group:

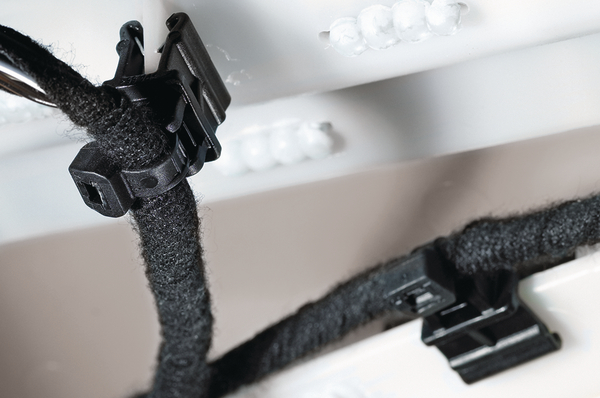

Application	These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Colour	Grey (GY)

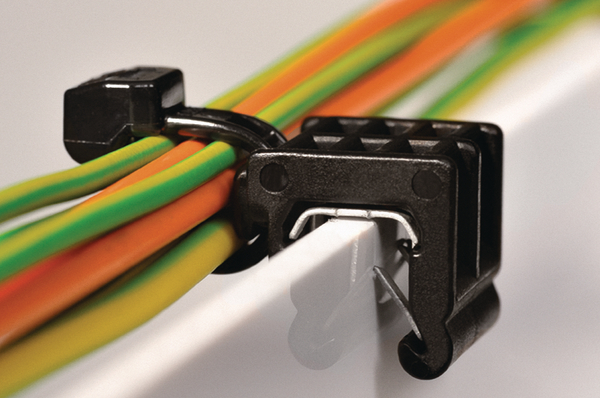

Description	Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Fixation Method	EdgeClip, sideway, assembled, 2 piece
Identification Plate Position	none
Material	Polyamide 4.6 (PA46)
PART DESCRIPTION	T50REC5B-PA46-GY
Pack Content	500pcs.
Package Content packed in	bag
Product Family	EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group	2-piece fixing ties for edges
Releasable Closure (Yes/No)	No
Type	T50REC5B
Variant	Inside Serrated
