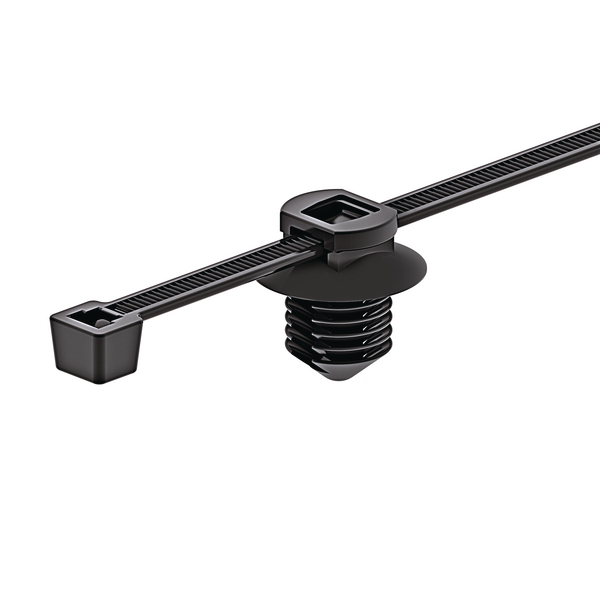

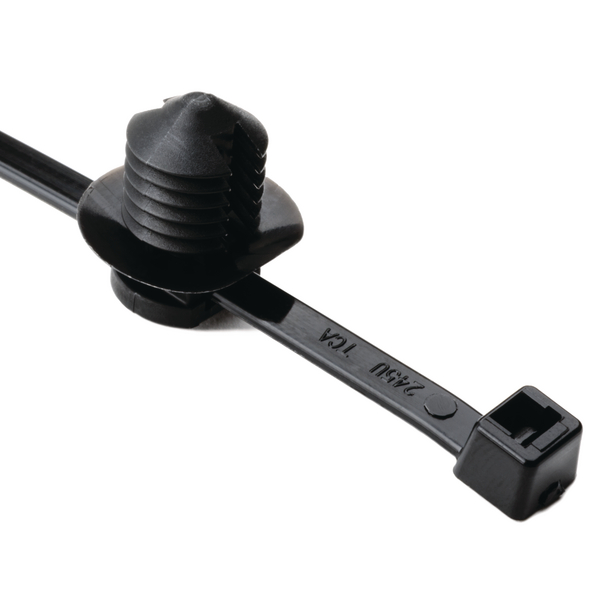

Pre-assembled 2-piece fixing tie with fir tree foot part
Cable tie head can be moved after bundling
Easy to assemble without the need for a tool
Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes

More products in this product group:

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour	Orange (OG), High Voltage (HV), Black (BK)
Description	These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method	Fir tree for round holes
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6 (PA66)
PART DESCRIPTION	T50RFT10-PA66HIRHS/PA66-OG/BK
Pack Content	500pcs.
Package Content packed in	bag
Product Family	Fir tree parts FT10
Product Group	2-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50RFT10
Variant	Inside Serrated


Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	5.0mm
Disc ∅	18.0mm
Disc ∅	0.71"
Height (H)	1.2mm
Height (H2)	12.1mm
Length (L)	202.0mm
Length (L2)	12mm
Min.Tensile Strength	225N
Panel Thickness	0.03 - 0.20"
Panel Thickness max.	0.8 - 5.0mm
Panel Thickness max. (imperial)	0.20"
Panel Thickness min. (imperial)	0.03"
Strap Width max. (G)	0.18"
Width (W)	4.6mm
Width (W2)	9.0mm
Width (W2)	0.35"
for Hole ∅ (FH)	9.7 - 10.0 mm
for Panel Thickness min - max	0 - 0.2 "
for Panel Thickness min - max	0.8 - 5 mm
