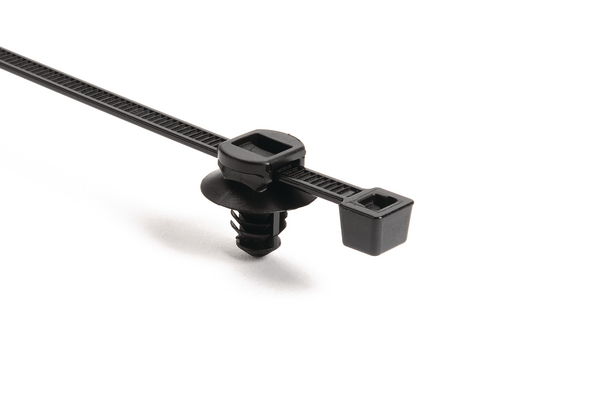

Fixing tie for hole (round), inside serrated, ∅2.0-50.0mm, black, 5000pcs.
Art.-No. 156-02517
| T50RFT6ASET-PA66HIRHSUV-BK
|
세부
Cable Tie | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
Colour | Black (BK) |
Fixation Method | Fir tree for round holes |
Identification Plate Position | none |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | T50RFT6ASET-PA66HIRHSUV-BK |
Pack Content | 5000pcs. |
Package Content packed in | bag |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T50RFT6ASET |
Variant | Inside Serrated |
Bundle Diameter max (metric) | 50.0mm |
Bundle ∅ min. | 2.0mm |
Height (H) | 16.4mm |
Length (L) | 203.2mm |
Min.Tensile Strength | 225N |
Panel Thickness | 0.02 - 0.14" |
Panel Thickness max. | 0.6 - 3.5mm |
Panel Thickness max. (imperial) | 0.14" |
Panel Thickness min. (imperial) | 0.02" |
Width (W) | 16.0mm |
for Hole ∅ (FH) | 6.1 - 7.1 mm |
for Panel Thickness min - max | 0.6 - 3.5 mm |
for Panel Thickness min - max | 0 - 0.1 " |
CE Certification | No |
CSA Certified | No |
ELV compliant (Article 4 - 2) | YES |
Hazardous Goods | No |
Operating Temperature | -40 °C to +105 °C |
ROHS compliant | Yes |
Specifications | |
UL Listed (US and Canada) | No |
UL Listed (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UV-Stabilised | Yes |
|
|
GTIN-13 / EAN | 4031026726830 |
Packaging 1 - Qty | 5000 |
Packaging 1 - Type | bag |
Packaging 1 - Weight (kg) | 9.300001kg |
Packaging 3 - Height (m) | 0.37465m |
Packaging 3 - Length (m) | 0.59055m |
Packaging 3 - Qty | 5000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.0646m³ |
Packaging 3 - Weight (kg) | 10.100001kg |
Packaging 3 - Width (m) | 0.29209999999999997m |
Packaging 4 - Height (m) | 1.27m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 60000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.219m³ |
Packaging 4 - Weight (kg) | 142.2kg |
Packaging 4 - Width (m) | 0.8m |
