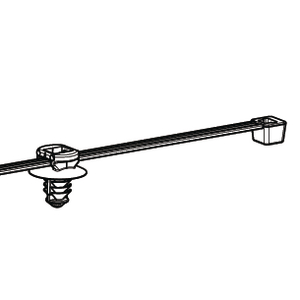

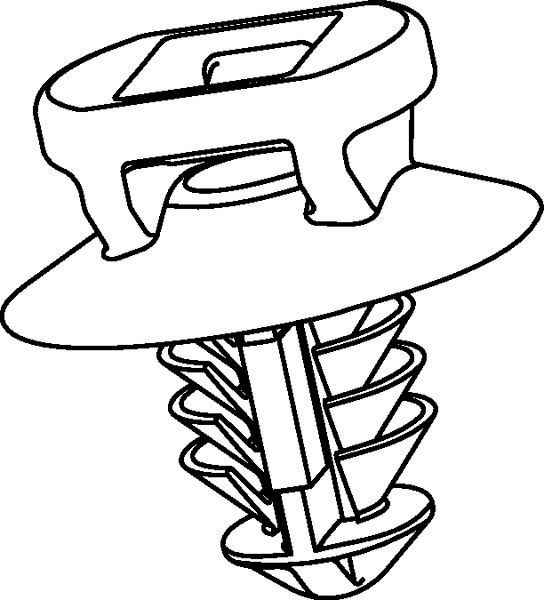

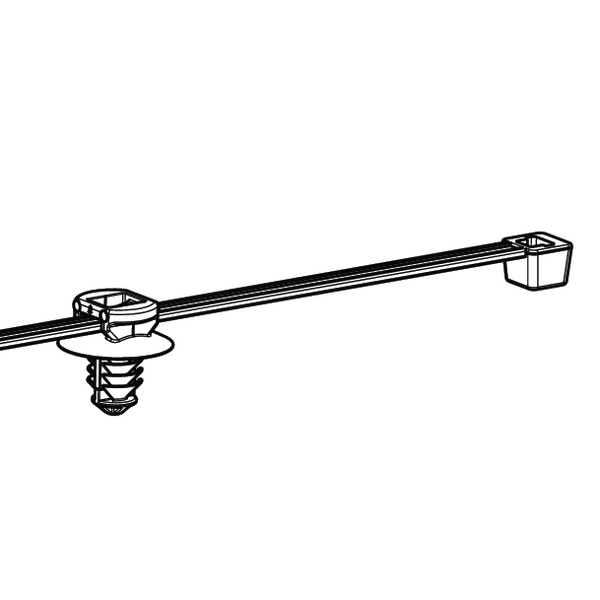

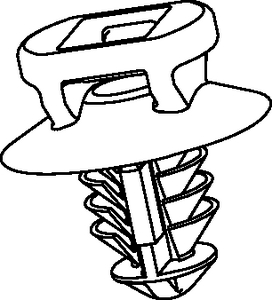

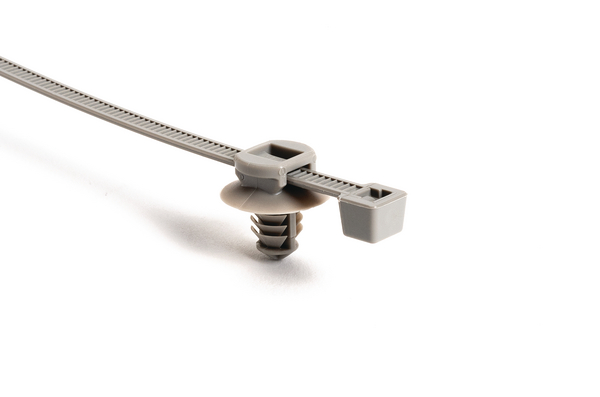

Fixing tie for hole (round), inside serrated, ∅2.0-50.0mm, grey, 5000pcs.
Art.-No. 156-02613
| T50RFT6ASET-PA46-GY
|
세부
| Cable Tie | Polyamide 4.6 (PA46) |
| Colour | Grey (GY) |
| Fixation Method | Fir tree for round holes |
| Identification Plate Position | none |
| Material | Polyamide 4.6 (PA46) |
| PART DESCRIPTION | T50RFT6ASET-PA46-GY |
| Pack Content | 5000pcs. |
| Package Content packed in | bag |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RFT6ASET |
| Variant | Inside Serrated |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ min. | 2.0mm |
| Height (H) | 16.4mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225N |
| Panel Thickness | 0.02 - 0.14" |
| Panel Thickness max. | 0.6 - 3.5mm |
| Panel Thickness max. (imperial) | 0.14" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 16.0mm |
| for Hole ∅ (FH) | 6.1 - 7.1 mm |
| for Panel Thickness min - max | 0.6 - 3.5 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +130 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026638454 |
| Packaging 3 - Height (m) | 0.2159m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.052m³ |
| Packaging 3 - Weight (kg) | 11.4kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.269m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 75000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.218m³ |
| Packaging 4 - Weight (kg) | 176.25kg |
| Packaging 4 - Width (m) | 0.8m |
