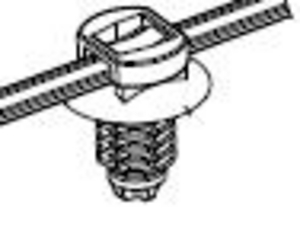

Fixing tie for hole (round), inside serrated, ∅4.0-45.0mm, black, 100pcs.
Art.-No. 156-00022 | T50RFT7-PA66HS-BK | 세부

These fir tree fixings can also be used in threaded, blind holes.

More products in this product group:

2-piece fixing ties with fir tree, with disc, for round holes >

Base Data

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool	ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie	Polyamide 6.6, heat stabilised (PA66HS)
Colour	Black (BK)
Description	These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method	Fir Tree
Foot Part	Polyamide 6.6, heat stabilised (PA66HS)
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	T50RFT7-PA66HS-BK
Pack Content	100pcs.
Package Content packed in	bag
Product Family	Fir tree parts FT7
Product Group	2-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50RFT7
Variant	Inside Serrated

Product Dimensions


Bundle Diameter max (metric)	45.0mm
Bundle ∅ min.	4.0mm
Disc ∅	0.63"
Disc ∅	16.0mm
Height (H)	1.2mm
Height (H2)	12.7mm
Length (L)	202.0mm
Min.Tensile Strength	225N
Width (W)	4.6mm
Width (W2)	11.6mm
for Hole ∅ (FH)	6.5 - 7.0 mm
for Panel Thickness min - max	0.8 - 7 mm

Downloads

Specifications
More Information

Specifications

Flammability	UL 94 V2
Operating Temperature	-40 °C to +125 °C
Operating Temperature Foot Part (Metric)	-40 °C to +105 °C, (+145 °C, 500 h)
ROHS compliant	Yes
Specifications

More Information

UNSPSC Key

39121717
