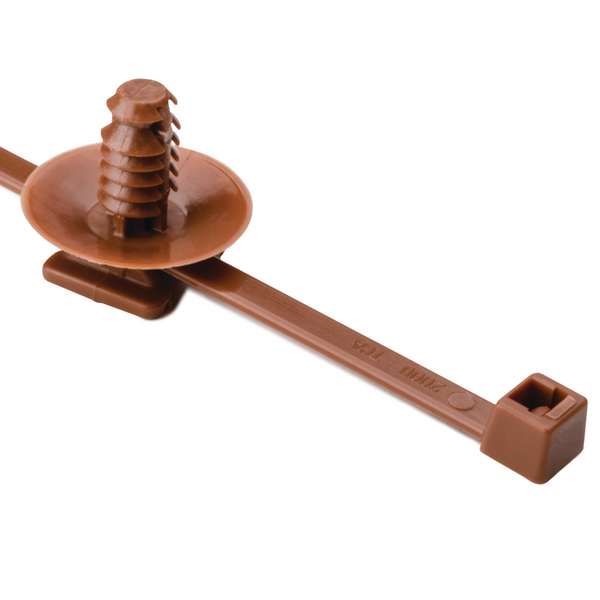

Fixing tie for hole (round), inside serrated, ∅1.5-50.0mm, brown, 500pcs.
Art.-No. 156-00457 | T50RFT7HD-PA46-BN | 세부

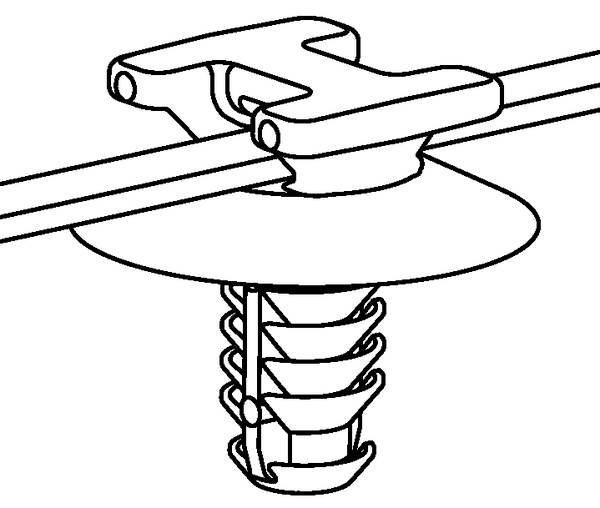

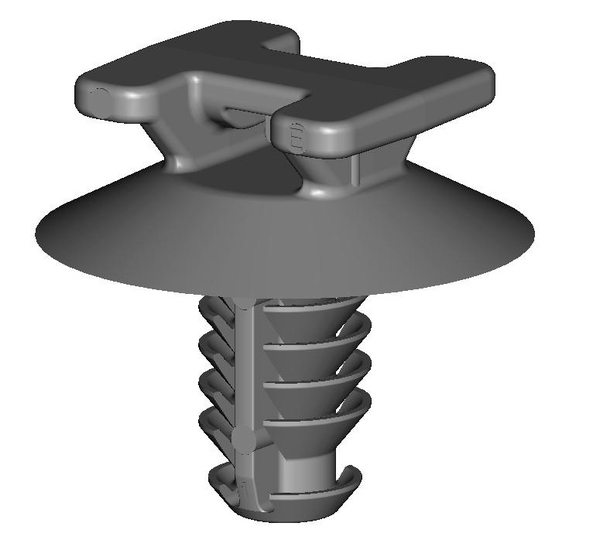

Pre-assembled 2-piece fixing tie with fir tree foot part
Cable tie head can be moved after bundling
Easy to assemble without the need for a tool
Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes

More products in this product group:

Application	Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie	Polyamide 4.6 (PA46)
Colour	Brown (BN)
Description	These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method	Fir tree for round holes
Foot Part	Polyamide 4.6 (PA46)
Identification Plate Position	none
Material	Polyamide 4.6 (PA46)
PART DESCRIPTION	T50RFT7HD-PA46-BN
Pack Content	500pcs.
Package Content packed in	bag
Product Family	Fir tree parts FT7
Product Group	2-piece fixing ties with fir tree, with disc, for round holes
Tie Closure	plastic pawl
Type	T50RFT7HD
Variant	Inside Serrated


Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	1.5mm
Disc ∅	0.9"
Disc ∅	21.6mm
Height (H)	19.8mm
Height (H2)	9.14mm
Length (L)	202.0mm
Length (L2)	11.6mm
Length (L3)	19.3mm
Min.Tensile Strength	225N
Panel Thickness	0.03 - 0.28"
Panel Thickness max.	0.8 - 7.0mm
Panel Thickness max. (imperial)	0.28"
Panel Thickness min. (imperial)	0.03"
Width (W)	4.6mm
Width (W2)	5.9mm
Width (W2)	0.23"
Width (W3)	5.9mm
Width (W3)	0.23"
for Hole ∅ (FH)	6.2 - 7.2 mm
for Panel Thickness min - max	0 - 0.3 "
for Panel Thickness min - max	0.8 - 7 mm
