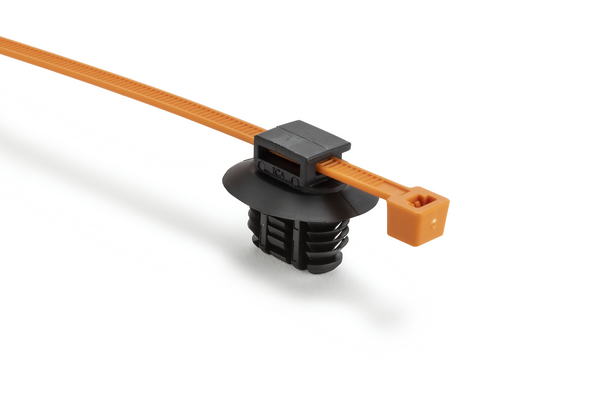

Fixing tie for hole (oval), inside serrated, ⌀5.0-50.0mm, orange/black, 2000pcs.
Art.-No. 156-04034 | T50RFT9X17A2SET-PA66HIRHS/PA66HIRHSUV-OG/BK

Copied
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour Orange (OG), High Voltage (HV), Black (BK)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T50RFT9X17A2SET-PA66HIRHS/PA66HIRHSUV-OG/BK
Pack Content 2000pcs.
Package Content packed in pack
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50RFT9X17A2SET
Variant Inside Serrated
Bundle ⌀ max. 50.0mm
Bundle ⌀ min. 5.0mm
Disc ⌀ 25.5mm
Disc ⌀ 1.0"
Fixing Hole Shape Oval
Height (H) 1.2mm
Height (H2) 20.3mm
Length (L) 202.0mm
Min.Tensile Strength 225N
Panel Thickness 0.02 - 0.22"
Panel Thickness max. 0.6 - 5.5mm
Panel Thickness max. (imperial) 0.22"
Panel Thickness min. (imperial) 0.02"
Strap Width max. (G) 0.21"
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 20.3mm
Width (W2) 0.79"
for Hole ⌀ (FH) 9.0 x 17.0 mm
for Panel Thickness min - max 0 - 0.2 "
for Panel Thickness min - max 0.6 - 5.5 mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Recognized (US) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026665740
Packaging 1 - Type carton
Packaging 3 - Height (m) 0.20954999999999998m
Packaging 3 - Length (m) 0.6048375m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0501
Packaging 3 - Width (m) 0.39528749999999997m
UNSPSC Key 39121703
