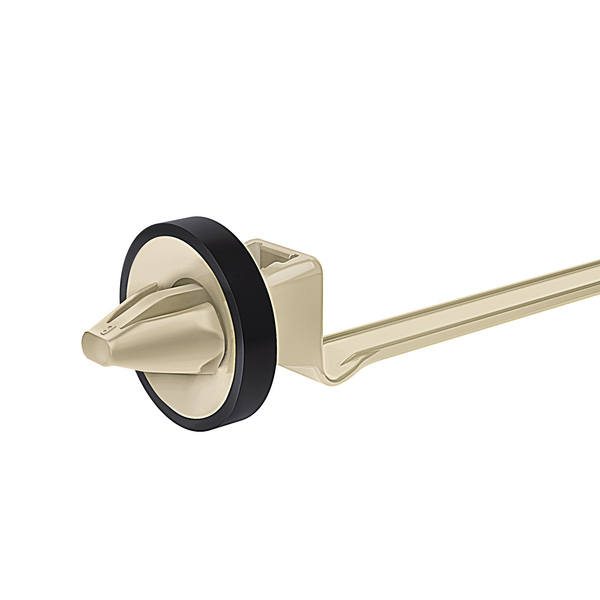

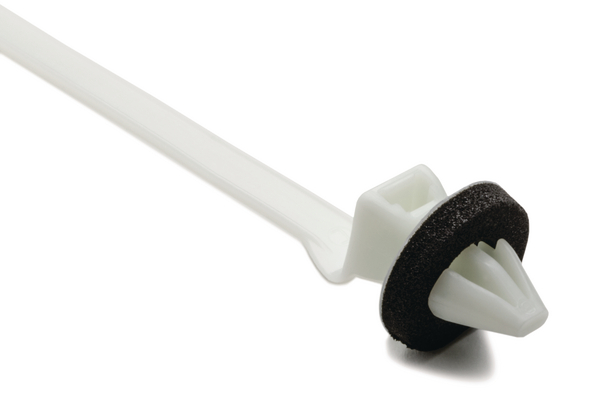

Fixing tie for hole (round), outside serrated, ∅1.6-50.0mm, natural, 500pcs.
Art.-No. 156-00444 | T50ROSAH6MDU-PA66HIRHS-NA | 세부

Easy to install without the need for a tool
Arrowhead simply locks into place
Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
Cable tie head always situated in a defined position
KSFT-types with specially rounded arrowhead minimise the assembly height

More products in this product group:

Application	With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
Colour	Natural (NA)
Fixation Method	arrowhead
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50ROSAH6MDU-PA66HIRHS-NA
Pack Content	500pcs.
Package Content packed in	bag
Product Family	for round holes
Product Group	1-piece fixing ties with arrowhead, with disc
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50ROSAH6MDU
Variant	Outside Serrated

Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	1.6mm
Disc ∅	0.63"
Disc ∅	16.0mm
Length (L)	216.0mm
Min.Tensile Strength	225N
Panel Thickness	0.03 - 0.08"
Panel Thickness max.	0.8 - 2.1mm
Panel Thickness max. (imperial)	0.08"
Panel Thickness min. (imperial)	0.03"
Width (W)	5.0mm
for Hole ∅ (FH)	6.2 - 6.6 mm
for Panel Thickness min - max	0.8 - 2.1 mm
for Panel Thickness min - max	0 - 0.1 "
