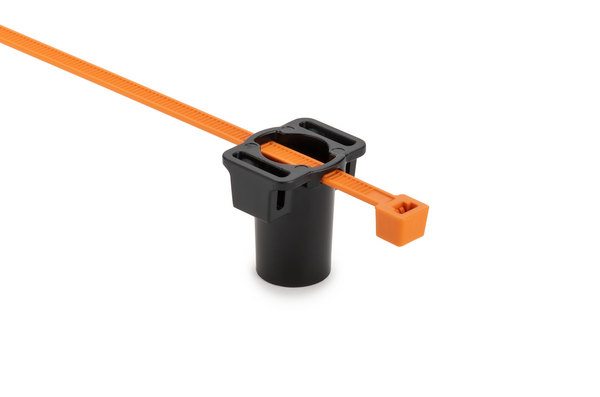

Fixing tie for stud, ∅4.0-50.0mm, orange/black, 2000pcs.
Art.-No. 156-04042 | T50ROSB8SET-PA66HIRHS/PA66HIRHSUV-OG/BK | 세부

Base Data

Cable Tie	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour	Orange (OG), High Voltage (HV), Black (BK)
Fixation Method	Stud Mount
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T50ROSB8SET-PA66HIRHS/PA66HIRHSUV-OG/BK
Pack Content	2000pcs.
Package Content packed in	carton
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50ROSB8SET

Product Dimensions

Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	4.0mm
Height (H)	25.0mm
Length (L)	202.0mm
Min.Tensile Strength	225N
Strap Width max. (G)	0.21"
Stud ∅	0.31"
Stud ∅	8.0 mm
Width (W)	4.6mm

Downloads

RoHS datasheet

다운로드

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UV-Stabilised	Yes

Logistics and Packaging

GTIN-13 / EAN	4031026665825
Packaging 3 - Height (m)	0.200m
Packaging 3 - Length (m)	0.511m
Packaging 3 - Qty	2000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0318m³
Packaging 3 - Weight (kg)	8.5kg
Packaging 3 - Width (m)	0.311m
Packaging 4 - Qty	80000
Packaging 4 - Type	pallet

More Information

UNSPSC Key

39121703
