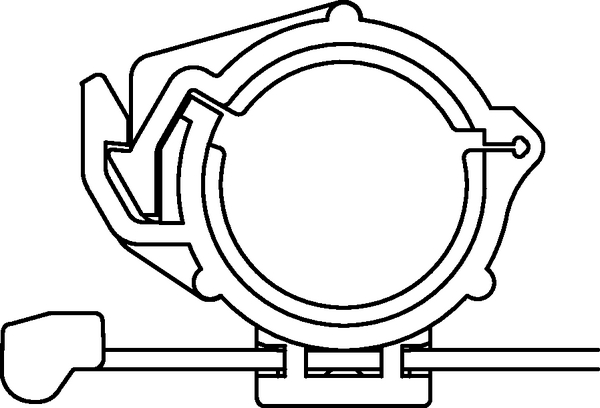

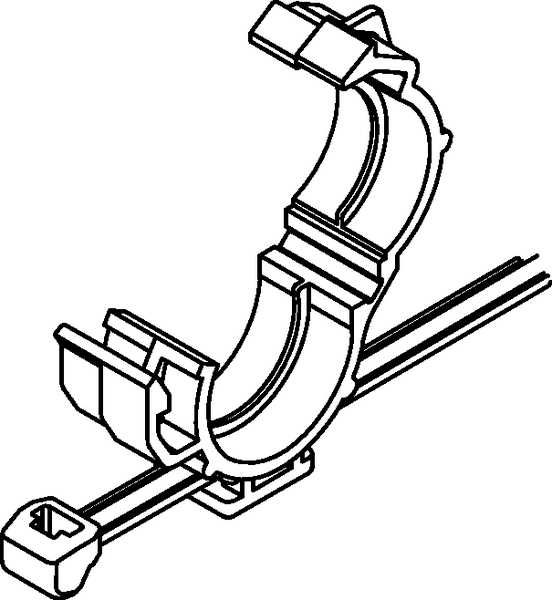

Fixing tie with pipe/tube holder, outside serrated, ⌀4.0-45.0mm, black, 500pcs.
Art.-No. 156-03353
| T50ROSCTCL14A-PA66HS/PA66HIRHS-BK
|
Copied
- 2-part fastening tie for corrugated conduits, nominal diameter 14.0 mm
- with cable strap holder for parallel cable routing
- Secure guidance of the conduit by simple click-in
- Axial displacement is prevented by the profile in the corrugated conduit holder
- No need to replace the entire product need to replace the entire product
More products in this product group:
| Application |
It is a mounting solution for all current and future electric vehicles. electric vehicles. In the application we are familiar with, a high-voltage high-voltage cable and a low-voltage cable must be routed parallel to each other. In the event of maintenance (e.g. replacement of the battery), it should be ensured that both cables cables remain together without making direct contact. Both cables are protected by a corrugated tube. |
| Colour | Black (BK) |
| Fixation Method | Omega Clip |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | T50ROSCTCL14A-PA66HS/PA66HIRHS-BK |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| Product Group | 2-piece fixing ties with pipe clip |
| Type | T50ROSCTCL14A |
다운로드
|
|
|
| GTIN-13 / EAN | 4031026657226 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0715m³ |
| Packaging 1 - Weight (kg) | 1.979142kg |
| Packaging 1 - Width (m) | 0.65m |
| Packaging 3 - Height (m) | 0.538m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.1213m³ |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
