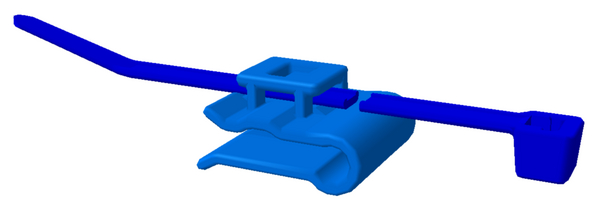

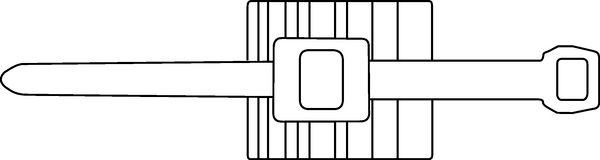

Fixing tie for edge, ∅4.0-50.0mm, black, 500pcs.
Art.-No. 156-01402 | T50ROSEC2.5B-PA66HS/PA66HIRHS-BK 세부

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Easy to assemble by hand
  • Cable tie head can be moved after bundling
  • For edges of 1.0 - 3.0 mm
  • Secure fixing of the EdgeClip into drill hole
  • Ideal for use wherever space is at its premium
Show more
Application Due to the tie's reduced installation height it is ideal for use wherever space is at a premium.
Colour Black (BK)
Description This EdgeClip is very easy to mount. The holding tab snaps into the drill hole very securely. You will hear and feel the connection being made during mounting. Cable ties from a variety of product series and varying in terms of their dimensions and materials can be used in conjunction with this fixing element.
Fixation Method Edge Clips without metal insert
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50ROSEC2.5B-PA66HS/PA66HIRHS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family for drill holes
Product Group 2-Piece Fixing Ties for Edges, for Holes
Type T50ROSEC2.5B

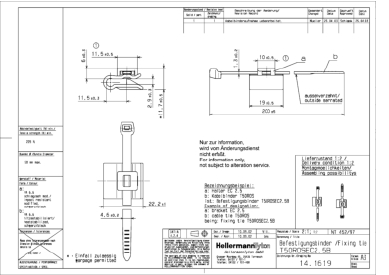

Bundle Diameter max (metric) 50.0mm
Bundle ∅ min. 4.0mm
Height (H) 1.3mm
Height (H2) 22.2mm
Length (L) 200.0mm
Length (L2) 19.0mm
Min.Tensile Strength 225N
Panel Thickness max. 1.0-3.0mm
Width (W) 4.6mm
Width (W2) 11.7mm
for Panel Thickness min - max 1 - 3 mm
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026505855
UNSPSC Key 39121703
