Fixing tie for edge, outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 150-02500 | T50ROSEC5SET-PA66HS/PA66HIRHS-BK | 세부

T50ROSEC10 fitted onto a plastic panel to hold a Ø 6 mm harness.

Base Data

Colour	Black (BK)
Fixation Method	Edge Clip
Identification Plate Position	none
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	T50ROSEC5SET-PA66HS/PA66HIRHS-BK

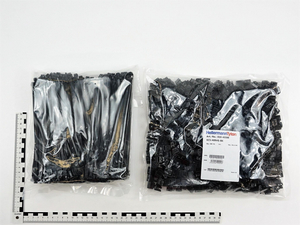

Pack Content	500pcs.
Package Content packed in	pcs.
Releasable Closure (Yes/No)	No
Tie Closure	plastic pawl
Type	T50ROSEC5SET
Variant	Outside Serrated

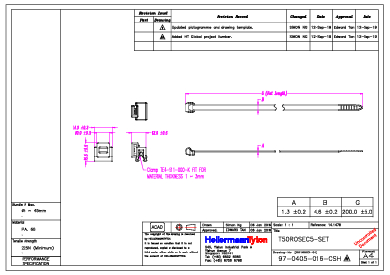

Product Dimensions

Bundle Diameter max (metric)	45.0mm
Bundle ∅ min.	4.0mm
Height (H)	1.3mm
Height (H2)	15.5mm
Length (L)	200.0mm
Length (L2)	14.0mm
Min.Tensile Strength	225N
Width (W)	4.6mm
Width (W2)	10.0mm
for Panel Thickness min - max	1 - 3 mm

Downloads

Specifications

ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging


GTIN-13 / EAN	4031026228136
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.204m
Packaging 3 - Length (m)	0.591m
Packaging 3 - Qty	4000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.048m³
Packaging 3 - Weight (kg)	6.280896kg
Packaging 3 - Width (m)	0.398m
Packaging 4 - Height (m)	1.164m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	80000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.117m³
Packaging 4 - Weight (kg)	146.64kg
Packaging 4 - Width (m)	0.8m

More Information

UNSPSC Key

39121731

Accessories
