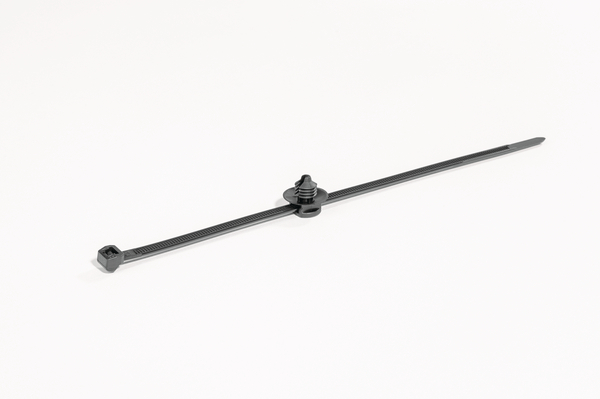

Fixing tie for hole (round), outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 156-00076 | T50ROSFT6-PA66HS/PA66HIRHS-BK 세부

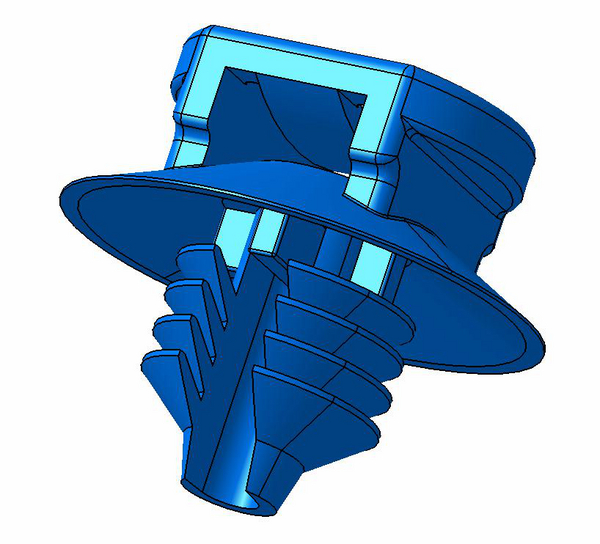

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more
Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)

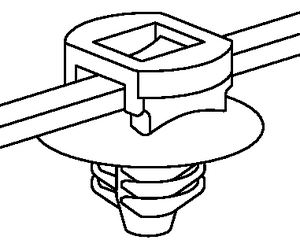

Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50ROSFT6-PA66HS/PA66HIRHS-BK
Pack Content 500pcs.
Package Content packed in pcs.
Product Family Fir tree parts FT6
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50ROSFT6
Variant Outside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
Height (H) 1.3mm
Height (H2) 7.5mm
Length (L) 200mm
Length (L2) 11.6mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Width (W) 4.6mm
Width (W2) 9.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 3 mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026253558
Packaging 1 - Height (m) 0.089m
Packaging 1 - Length (m) 0.24m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00662
Packaging 1 - Weight (kg) 0.950001kg
Packaging 1 - Width (m) 0.31m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 6.45kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.195m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.147
Packaging 4 - Weight (kg) 150.0kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
