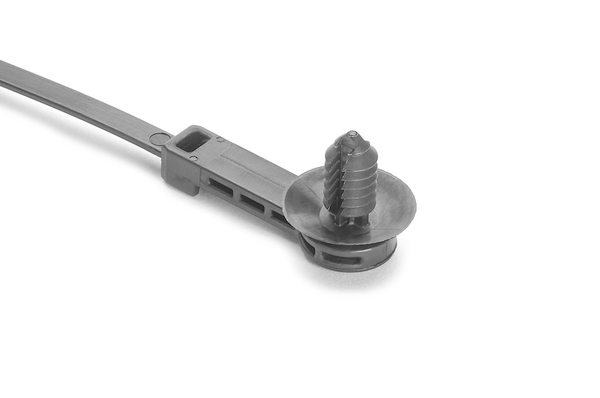

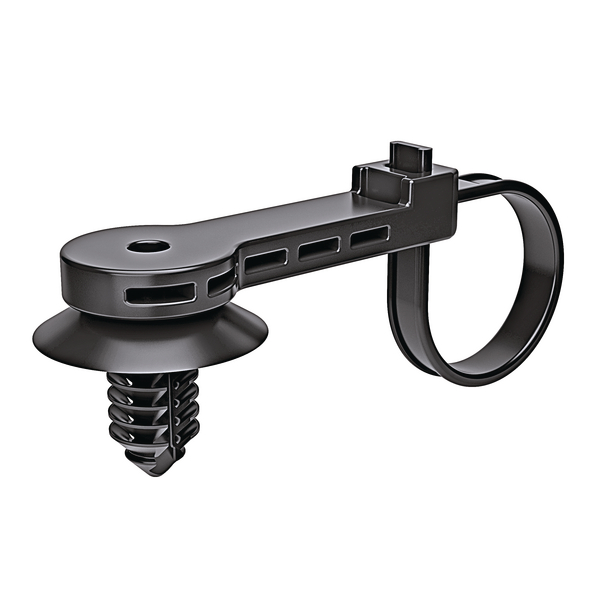

Fixing tie for hole (round), ∅2.0-50.0mm, grey, 500pcs.
Art.-No. 157-00175 | T50ROSFT6SO25B-PA66HIRHSUV-GY | 세부

Bundling and fixing solution
Ideal combination of materials and design
Different positions of the fixing anchor are available to fit installation space

More products in this product group:

Colour	Grey (GY)
Fixation Method	Fir tree for round holes
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	T50ROSFT6SO25B-PA66HIRHSUV-GY
Pack Content	500pcs.
Package Content packed in	bag
Product Family	With offset 12.5 and 25.0 mm
Product Group	1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
Releasable Closure (Yes/No)	No
Type	T50ROSFT6SO25B

Bundle Diameter max (metric)	50.0mm
Bundle ∅ min.	2.0mm
Disc ∅	0.75"
Disc ∅	19.0mm
Length (L)	230.0mm
Length (L2)	25.0mm
Min.Tensile Strength	225N
Offset Length	25.0mm
Panel Thickness	0.02 - 0.26"
Panel Thickness max.	0.6 - 6.65mm
Panel Thickness max. (imperial)	0.26"
Panel Thickness min. (imperial)	0.02"
Width (W)	5.1mm
for Hole ∅ (FH)	6.1 - 6.9 mm
for Panel Thickness min - max	0.6 - 6.7 mm
for Panel Thickness min - max	0 - 0.3 "
