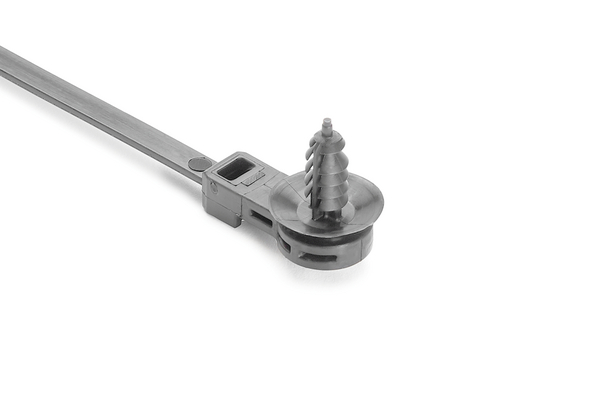

Fixing tie for hole (round), ∅2.0-50.0mm, grey, 500pcs.
Art.-No. 157-00270 | T50ROSFTM6SO12.5B-PA66HIRHSUV-GY 세부

  • Bundling and fixing solution
  • Ideal combination of materials and design
  • Different positions of the fixing anchor are available to fit installation space
Colour Grey (GY)
Fixation Method Fir Tree
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T50ROSFTM6SO12.5B-PA66HIRHSUV-GY
Pack Content 500pcs.
Package Content packed in bag
Product Family With offset 12.5 and 25.0 mm
Product Group 1-piece fixing ties with fir tree, with disc, with stand-off, for round holes
Releasable Closure (Yes/No) No
Type T50ROSFTM6SO12.5B
Bundle Diameter max (metric) 50.0mm
Bundle ∅ min. 2.0mm
Disc ∅ 0.59"
Length (L) 215.9mm
Length (L2) 12.5mm
Min.Tensile Strength 225N
Offset Length 12.5mm
Panel Thickness 0.26"
CE Certification No
CSA Certified No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026567938
UNSPSC Key 39121703
