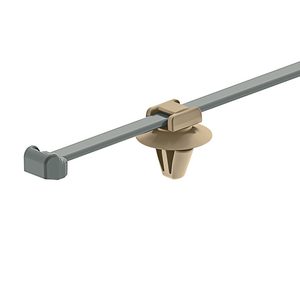

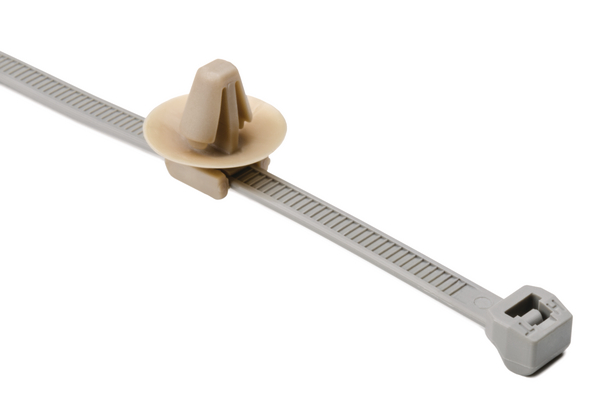

Fixing tie for hole (round), outside serrated, ∅1.0-45.0mm, grey/beige, 100pcs.
Art.-No. 156-00456
| T50ROSP2SFT6.5-PA46/PEEK-GY/BGE
|
세부
- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
- Features material PEEK:
- '-55 °C to +240 °C operating temperature
- Excellent resistance against chemicals and gamma radiation
More products in this product group:
| Application | The Fixing-Ties with P1SFT6.5 and P2SFT6.5 are ideal when the requirements for temperature or chemical resistance are very high. They are used for cable harnesses in the automotive industry. |
| Cable Tie | Polyamide 4.6 (PA46) |
| Colour | Grey (GY), Beige (BGE) |
| Fixation Method | arrowhead |
| Foot Part | Polyetheretherketone (PEEK) |
| Identification Plate Position | none |
| Material | Polyamide 4.6 (PA46), Polyetheretherketone (PEEK) |
| PART DESCRIPTION | T50ROSP2SFT6.5-PA46/PEEK-GY/BGE |
| Pack Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | T50ROSP2SFT6.5 for panel thickness 1.7 - 2.3 mm |
| Product Group | 2-Piece Fixing Ties with Arrowhead, with Disc for high temperature applications |
| Tie Closure | plastic pawl |
| Type | T50ROSP2SFT6.5 |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 45.0mm |
| Bundle ∅ min. | 1.0mm |
| Disc ∅ | 16.0mm |
| Disc ∅ | 0.63" |
| Height (H) | 16.0mm |
| Height (H2) | 16mm |
| Length (L) | 200.0mm |
| Length (L2) | 8.6mm |
| Min.Tensile Strength | 225N |
| Panel Thickness | 0.07 - 0.09" |
| Panel Thickness max. | 1.7 - 2.3mm |
| Panel Thickness max. (imperial) | 0.09" |
| Panel Thickness min. (imperial) | 0.07" |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
| for Panel Thickness min - max | 1.7 - 2.3 mm |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +150 °C, -55 °C to +240 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| GTIN-13 / EAN | 4031026300160 |
| Packaging 1 - Height (m) | 0.055m |
| Packaging 1 - Length (m) | 0.275m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00484m³ |
| Packaging 1 - Weight (kg) | 0.204162kg |
| Packaging 1 - Width (m) | 0.32m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 4.12724kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 40000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 103.6kg |
| Packaging 4 - Width (m) | 0.8m |
