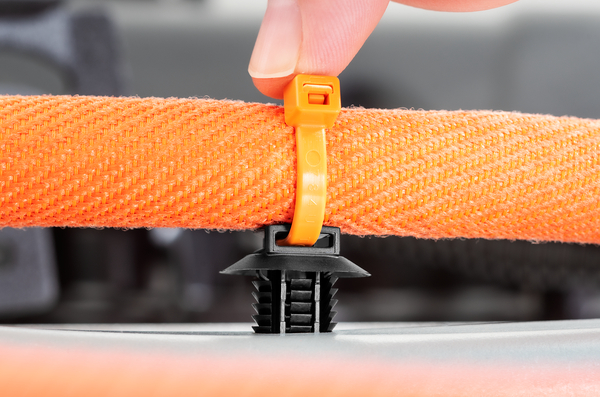

Fixing tie for hole (oval), inside serrated, ⌀5.0-50.0mm, orange/black, 3000pcs.
Art.-No. 156-04033 | T50RSADFTOVALSET-PA66HIRHS-OG/BK

Copied
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Colour Orange (OG), High Voltage (HV), Black (BK)
Fixation Method Fir Tree for oval holes
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50RSADFTOVALSET-PA66HIRHS-OG/BK
Pack Content 3000pcs.
Package Content packed in pack
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50RSADFTOVALSET
Variant Inside Serrated
Bundle ⌀ max. 50.0mm
Bundle ⌀ min. 5.0mm
Fixing Hole Shape Oval
Height (H) 20.0mm
Length (L) 202.0mm
Min.Tensile Strength 225N
Panel Thickness 0.02 - 0.24"
Panel Thickness max. 0.6 - 6.0mm
Panel Thickness max. (imperial) 0.24"
Panel Thickness min. (imperial) 0.02"
Strap Width max. (G) 0.21"
Thickness (T) 1.2mm
Width (W) 17.63mm
for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 6 mm
for Panel Thickness min - max 0 - 0.2 "
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Recognized (US) No
GTIN-13 / EAN 4031026665733
Packaging 1 - Type carton
Packaging 3 - Height (m) 0.20954999999999998m
Packaging 3 - Length (m) 0.6048375m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0501
Packaging 3 - Width (m) 0.39528749999999997m
UNSPSC Key 39121703
