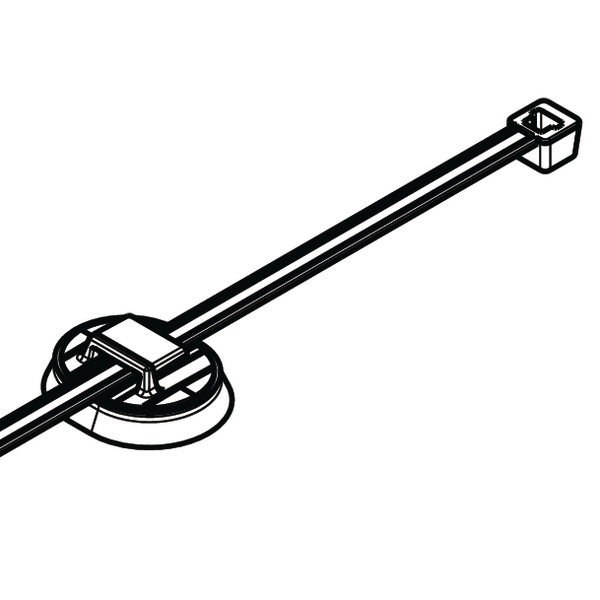

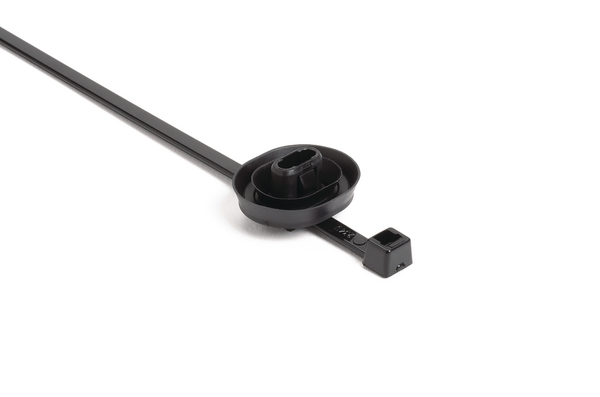

Fixing tie for hole (round), inside serrated, ∅3.0-50.0mm, black, 4000pcs.
Art.-No. 156-02755
| T50RSAHOVALSDSET-PA66HIRHSUV/TPE-BK
|
세부
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE) |
| PART DESCRIPTION | T50RSAHOVALSDSET-PA66HIRHSUV/TPE-BK |
| Pack Content | 4000pcs. |
| Package Content packed in | carton |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50RSAHOVALSDSET |
| Variant | Inside Serrated |
| Bundle Diameter max (metric) | 50.0mm |
| Bundle ∅ min. | 3.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 13.73mm |
| Length (L) | 203.2mm |
| Min.Tensile Strength | 225N |
| Panel Thickness | 0.02 - 0.04" |
| Panel Thickness max. | 0.6 - 1.1mm |
| Panel Thickness max. (imperial) | 0.04" |
| Panel Thickness min. (imperial) | 0.02" |
| Width (W) | 27.28mm |
| for Hole ∅ (FH) | 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 1.1 mm |
다운로드
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| GTIN-13 / EAN | 4031026726854 |
| Packaging 1 - Qty | 4000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 12.000001kg |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.606425m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0504m³ |
| Packaging 3 - Weight (kg) | 12.36kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Qty | 120000 |
