19/11/2024

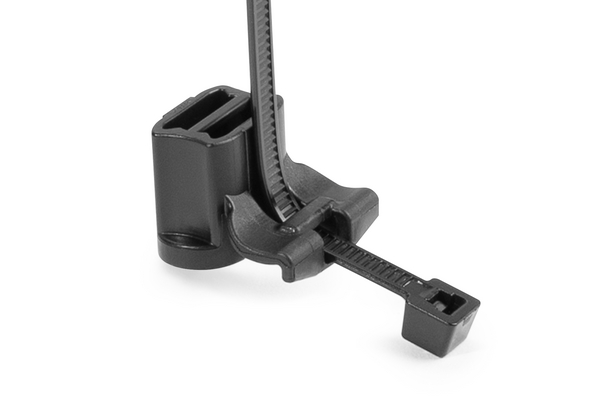

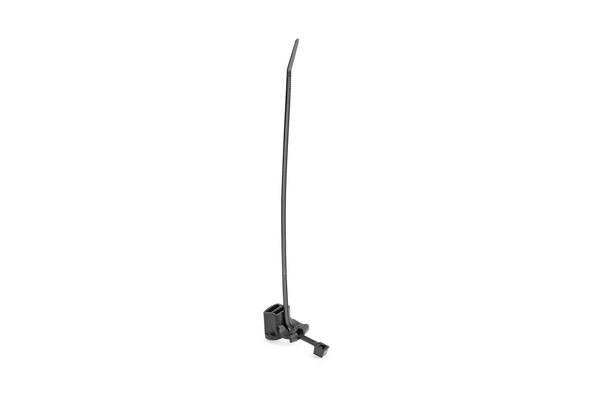

Fixing tie for stud, inside serrated, ∅2.0-45.0mm, black, 500pcs.
Art.-No. 156-00754 | T50RSB5CSD-PA66HS/PA66HIRHS-BK 세부

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Black (BK)
Fixation Method Weld Stud Fixing
Identification Plate Position none
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50RSB5CSD-PA66HS/PA66HIRHS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Group 2-Piece Fixing Ties for Weld , moveable
Tie Closure plastic pawl
Type T50RSB5CSD
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ min. 2.0mm
Height (H) 1.2mm
Height (H2) 17.2mm
Length (L) 200mm
Length (L2) 22mm
Max Stud Length 15.5mm
Min Stud Length 14.2mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm
Width (W) 4.6mm
Width (W2) 23.1mm
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026427157
UNSPSC Key 39121717
