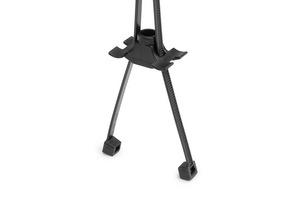

Fixing tie for stud, inside serrated, ∅2.0-35.0mm, black, 500pcs.
Art.-No. 150-56193 | T50SDSBS5-PA66HS/PA66HIRHS-BK 세부

  • Pre-assembled 2-piece fixing tie with stud retainer
  • For parallel routing of cables, hoses or harnesses
  • Cable tie head can be moved after bundling
  • Easy to install without the need for a tool
  • For 5 mm studs or 5 mm ISO threaded studs
Show more
Application Widely used for securing cables pipes and hoses in the automotive and truck building industries, the mounting base is simply pushed onto a 5 mm diameter stud or bolt.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features for multiple routing
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50SDSBS5-PA66HS/PA66HIRHS-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family 2-piece fixing ties for weld studs, for parallel routing
Product Group 2-piece fixing ties for weld studs, for parallel routing
Releasable Closure (Yes/No) No
Type T50SDSBS5
Variant Inside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ min. 2.0mm
Height (H) 1.2mm
Height (H2) 15mm
Length (L) 150mm
Length (L2) 20mm
Min Stud Length 14.2mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 30.0mm
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 4031026193755
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.43m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0218
Packaging 1 - Weight (kg) 1.914597kg
Packaging 1 - Width (m) 0.39m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 2000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.678388kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 125.16kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
