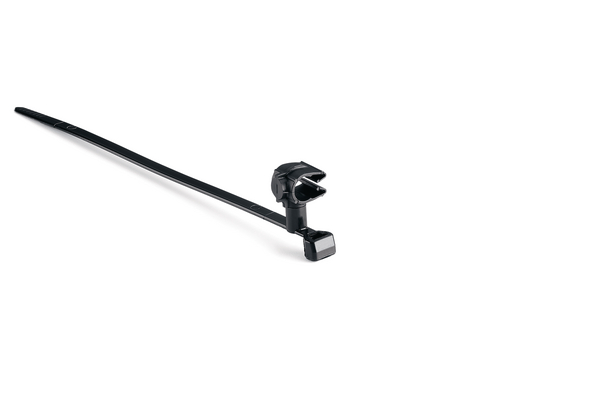

Fixing tie with pipe/tube holder, ∅6.0-8.0mm, black, 2000pcs.
Art.-No. 156-01775 | T50SMVCMOC7M-PA66HIRHSUV-BK 세부

Cable ∅ max 50.0mm
Cable ∅ min 2.0mm
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION T50SMVCMOC7M-PA66HIRHSUV-BK
Pack Content 2000pcs.
Package Content packed in carton
Product Group 2-piece fixing ties with pipe clip
Type T50SMVCMOC7M
Bundle Diameter Nom. (ND) 7.0 mm
Bundle Diameter max (metric) 8.0mm
Bundle ∅ min. 6.0mm
Depth (D) 10.0mm
Height (H) 25.4mm
Length (L) 13.2mm
Length (L2) 14.0mm
Min.Tensile Strength 225N
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026586854
Packaging 1 - Weight (kg) 200.61kg
Packaging 3 - Height (m) 0.20955m
Packaging 3 - Length (m) 0.60801m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0506
Packaging 3 - Width (m) 0.39688m
UNSPSC Key 39121702
